EDM 18GII / EZ

Introduction

EDM 18GII/EZ sliding door operator forms the basis to any door automation solution. Equipped with our trademark microprocessor control and powerful motor drive system, EDM 18GII/EZ adapts effortlessly to varied door widths and weight capacities.

Ease of Installation

• With modular plug-in parts installed directly from the front onto our base rail, any component can be moved during or after installation. Components can also be added or replaced with ease later, therefore time spent on installation or servicing is greatly reduced.

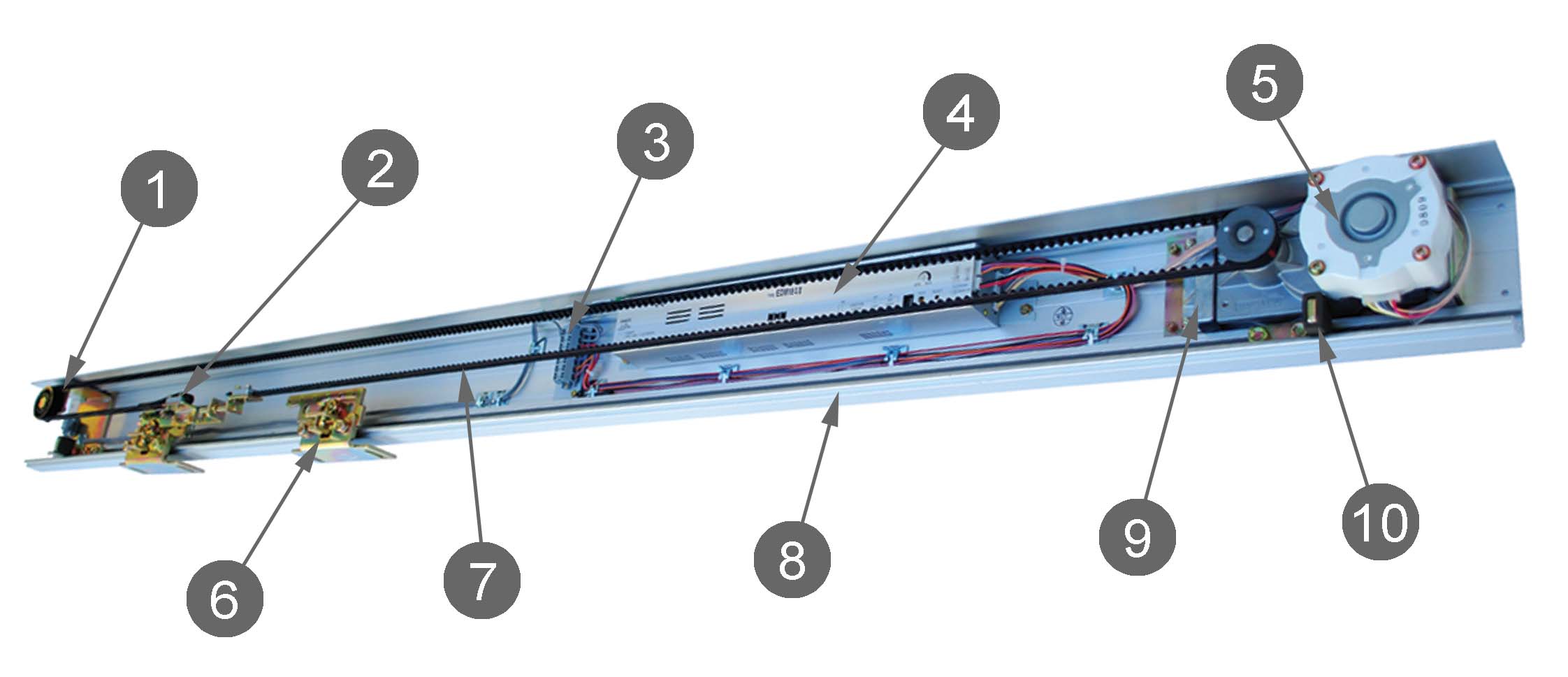

EDM GII/EZ Operator

1. Motor with mount bracket and vibration proof rubber
2. Control box assembly
3. Terminal Input
4. Idle pulley
5. End stopper
6. Rail
7. Tooth belt
8. Hanger roller bracket
9. Belt tightening bracket
10. Power switch

Full Door Control

• From the very first power on, initial door optimisation is automatic. Utilising adjustments provided as standard, (without the need for a hand held PALM or expensive software) optimum door movement can be achieved with ease. All door data is stored until reset to default settings when required.

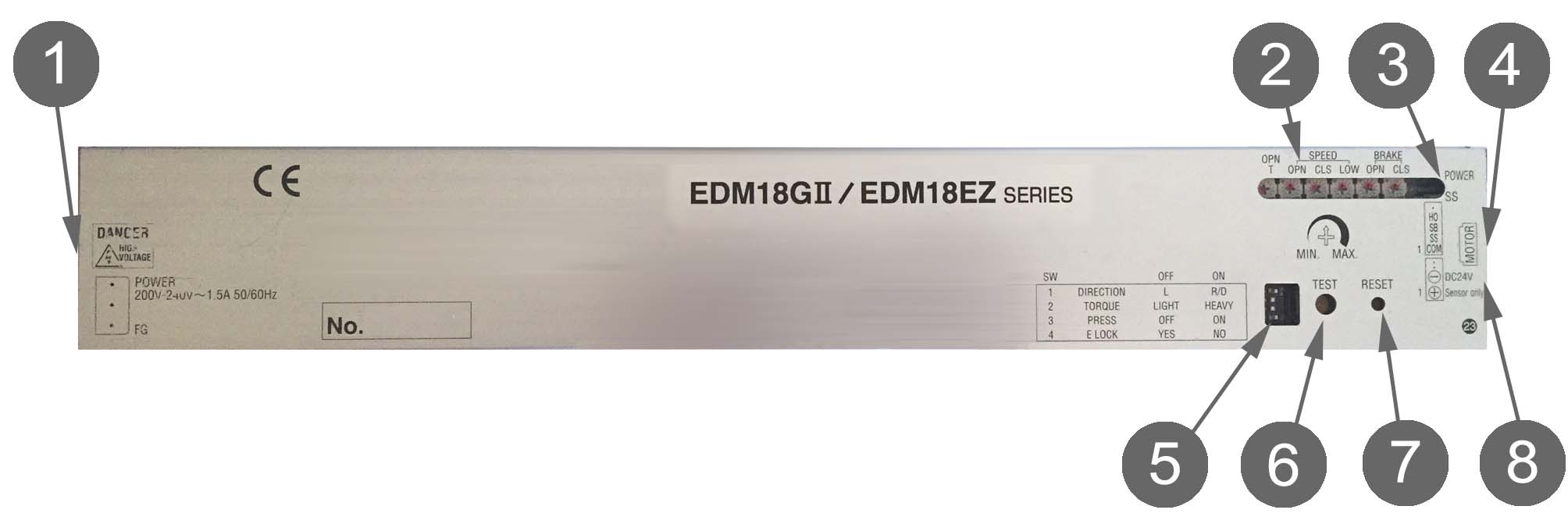

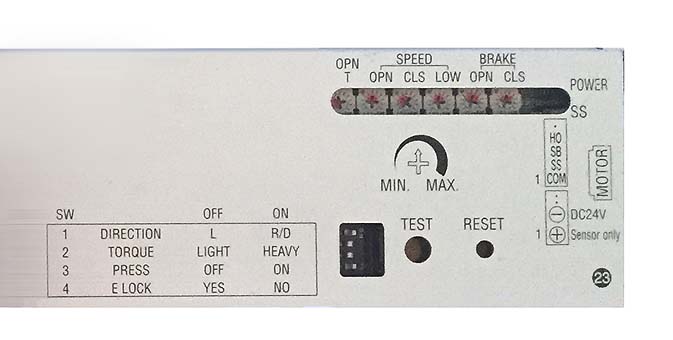

Control Panel & Adjustment

1. Power input
2. Parameter adjustment
3. Power and activation LED
4. Motor harness input
5. Dip Switch settings
6. Test button
7. Reset button
8. Accessory & 24Vdc harness

• PARAMETER ADJUSTMENT:
• OPN T = Open Timer
• SPEED
  – OPN = Open Speed
  – CLS = Close Speed
  – LOW = Open / Close Low Speed
• BRAKE
  – OPN = Open braking
  – CLS = Close braking
• POWER LED – Red when power is on
• SS LED – Flashes Green when activation signal is received
• TEST – Push to activate door without sensors to check installation
• RESET – Push and hold to reset default factory setting
• DIP Switch :
  1. Open Direction
  2. Torque
  3. Press
  4. E-Lock

Summary

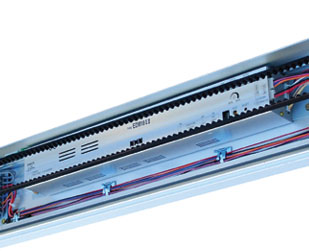

Control Box

• Function & Parameter Adjustment – Microprocessor technology provides exact door control, wide function input options and digital setting adjustment.
• Memory – Long term memory retention of operational parameters when mains power is off. Settings can be rewritten up to 1 billion times.
• Extended Functions (i.o) – Aside from standard function common to all other sliding door operators, when incorporating expansion (i.o) board, EDM NII Series offers many more door operation possibilities.

Standard Inputs

• Power AC100 ~ 240V (AC220V)
• DC24V output for accessories
• Sensor / Activation Signal (SS)
• Threshold Protection (SB)
• Hold Open (HO)
• Partial Open (HS)

Function Summary

• Automatic Door Learning & Optimization
• Economic Operational Setting
• Automatic Braking Position
• Partial Open (50%)
• Press Open / Close Feature
• Obstruction Detection
• Energy Saving When Inactive
• Memory With Power Off
• See Overview for details of control features.

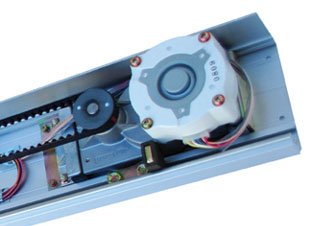

Motor Gear

• Compact and powerful motor. High speed acceleration and deceleration is controlled.
  MICOM enclosed brushless motor gear ensures safe and long term reliable operation for
  enhanced operational cost efficiency.
• Controlled Motor Speed (500mm/s max)
• 90 – 180kg Load Capacity
• High Precision Brushless Molded DC Motor
• Near Silent Acceleration and Braking
• Smooth Operation

Monitoring & Safety – (SMB Option)

• SMB is a SENSOR & BATTERY MONITORING SYSTEM which offers compliance with EU Norm EN16005 across our range of EDM Series automatic sliding door operators. A modular system for enhanced automatic door safety. Simple to install, offering added protection and multi-functional features which include:

• Conforming to EN16005
• Individual Sensor Monitoring & Safety
• Battery Functions & Monitoring
• Key Function Selector Switch
• Individual Sensor Inputs & Wiring
• LED Indicator (Mode & Error)
• Emergency Open Input
• 24VAC Power Input (Isolated Transformer)
• Night Mode (Switch) Input
• Secure E-Lock Functions

SMB Features

1. Signal Input Connection
2. External Sensor Input
3. Internal Sensor Input
4. LED Monitoring Error & Battery Indicator
5. DIP Switch – Sensor & Battery Monitoring On / Off
6. E-Lock Timer
7. Side Screen Input 1
8. Side Screen Input 2
9. Battery Pack
10. Selector Switch Connection
11. E-Lock Input / Output
12. Battery Connector (Not shown)

Key Selector Switch

• A Rotary Key function selector switch is supplied together with SMB.
• SMB will not function without our selectors and it is therefore an integral part of our safety in design.
• Connected into the SMB hub, all signals are controlled for greater ease of operation.
• Specifically designed so selection can only be performed by an authorized personnel using secure key provided.

Rotary Key Selector

1. Closed / 2. Exit / 3. Automatic / 4. Hold Open (Emergency – Anti Panic Open Button – Option)

Electro-Mechanical Locking (Standard Option)

• Electromagnetic Locking – EDM 18GII/EZ Electromagnetic locking ‘Fail Secure’ (LK1) option is available.

Delivery

EDM 18GII/EZ Series – Available from Japan in formats as follows:

• ‘COMPLETE OPERATOR’ consisting of: Base Rail, Cover, Control Box, Motor Gear Box, End Covers, Sensor Harness, Wiring Terminal, Tooth Belt, Belt Bracket Link Assembly, Belt Connection Single & Double Door, Idle Pulley, Hanger Roller Brackets x4 and Stopper x2
  (COMPLETE OPERATOR – Standard Rail Length: Single Leaf – 2000mm, Double leaf – 6000mm)
•  ‘FULL KIT’ – (Without Rail & Cover) consisting of: Control Box, Motor Gear Box, Sensor Harness, Wiring Terminal, Tooth Belt (7M), Belt Bracket Link Assembly, Belt Connection Single & Double Door, Idle Pulley Assembly.
• RAIL & COVER – (Material Only) – Standard Length: 2000mm – 6000mm Available

Accessories

EDM 18GII/EZ together with SMB when used as a complete operator is designed for use with a new range of sensors such as BEA IXIO-S & Optex 0A-Axis-T.

EDM 18GII/EZ when used without SMB can also accept all current sensors available in the world market today, such as BEA Eagle & Optex OA-203C together with threshold safety beam protection.
