EDM 30E

Introduction

EDM 30E heavy commercial sliding door operator forms the basis to any door automation solution requiring strength and performance. Equipped with our trademark microprocessor control and powerful motor drive system, EDM 30E Series adapts effortlessly to varied weight capacities of single doors up to 250kg and double doors up to 175kg per leaf.

Ease of Installation

• With modular plug-in parts installed directly from the front onto our base rail, any component can be moved during or after installation. Components can added or replaced with ease, therefore time spent on installation or servicing is greatly reduced.

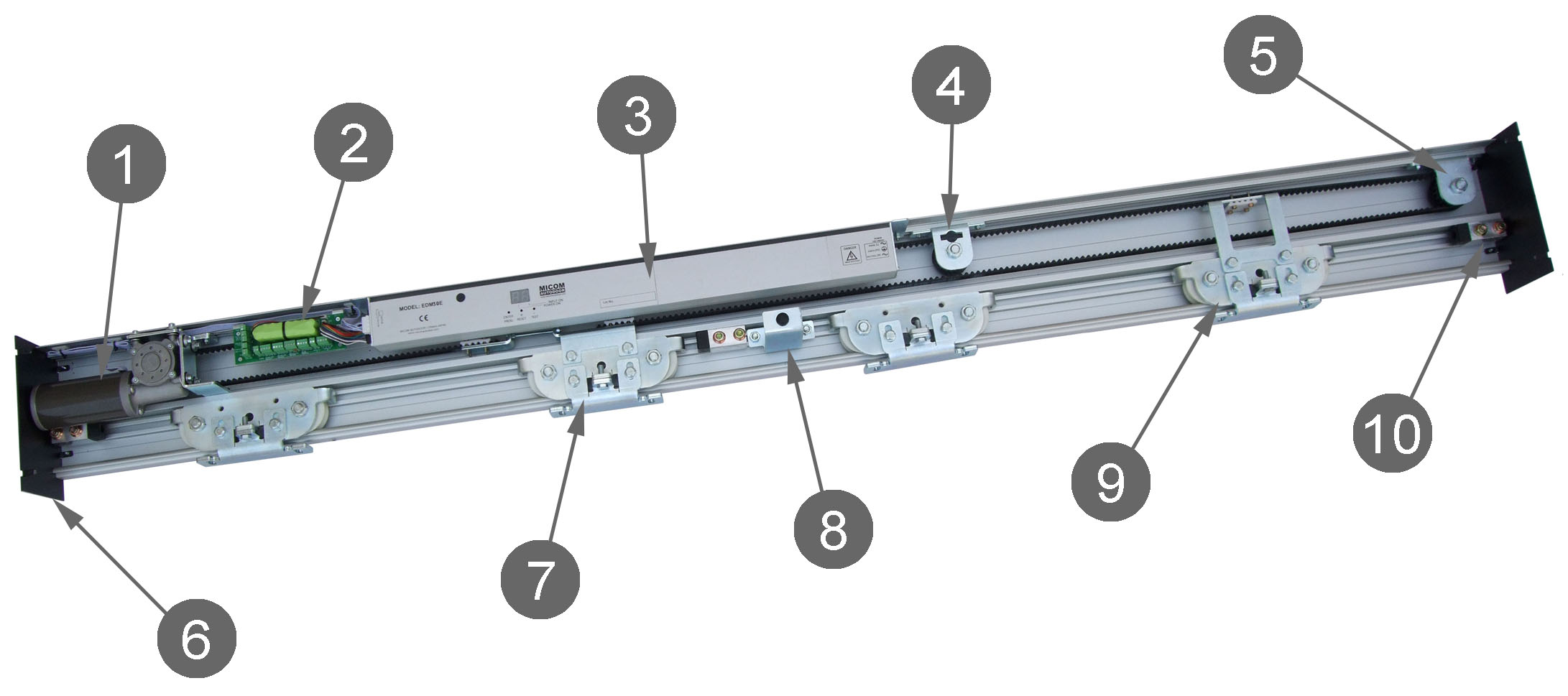

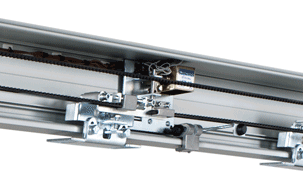

EDM 30E Operator

1. Motor gear box with vibration rubber
2. Emicon plug-in hub with battery
3. Control box with fixing plate
4. Centre belt idle guide
5. Idle pulley
6. End cover
7. Hanger roller bracket with belt tension
8. Cover support
9. Hanger roller bracket (double door)
10. End stop

Full Door Control

• From the very first power on, door optimization is automatic. Utilizing the LED Digital input display provided as standard, all parameters can be adjusted easily (without the need for any hand held PALM or expensive software). Access to operational history, cycle count and error analysis is also possible. Door parameter data can be reset to factory default settings with ease.

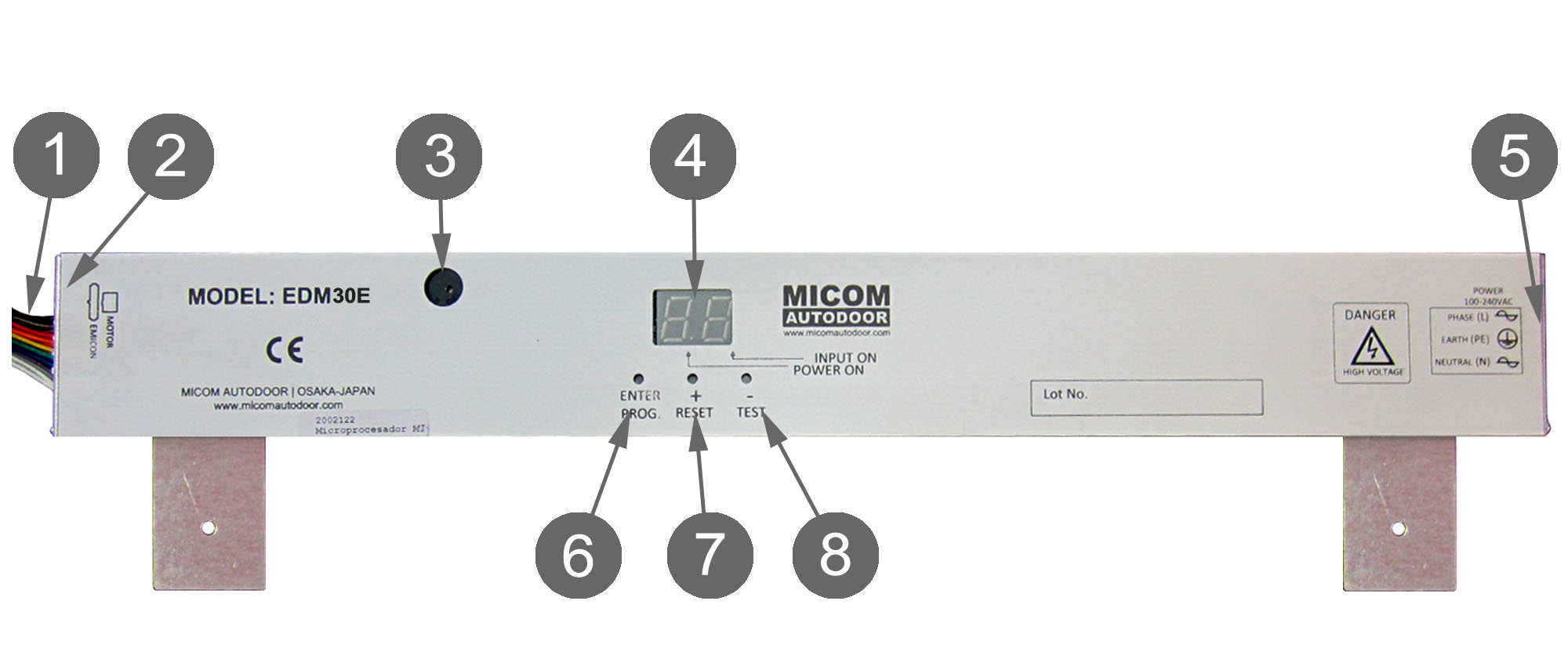

Control Panel & Adjustment

1. EMICON Connection Harness
2. Motor Harness Plug in
3. Buzzer
4. LED Display
5. Power Plug in
6. Entre Prog
7. ‘+’ / Reset
8. ‘-‘ / Test

• INPUT ON LED – Red when activation signal is received
• POWER ON LED – Red when power is on
• Digital LED Display – Visual display provided for operational setting and adjustment
• Buzzer – Audible indication of error status (optional)
• ENTER PROG. – Allows easy access to operational settings

     + RESET

•  ‘+’ Operational setting – value can be increase.
•  ‘RESET’ Operation factory settings can be restored

     – TEST

•  ‘-‘ Operational setting – value can be decreased.
•  ‘TEST’ Operation can be tested by installer

Summary

EDM 30E Control Box

• Function & Parameter Adjustment – Microprocessor technology provides exact door control, wide function input options and digital setting adjustment.
• Memory – Long term memory retention of operational parameters when mains power is off.

Function Summary

• Digital Input Programming
• Wide Operational Parameter Setting
• System Error Diagnosis
• Open Timer (60sec)
• Open Speed (500mm/s)
• Close Speed (450mm/s)
• Open / Close  Torque
• Open / Close Break Force
• Open / Close Press Force
• Open / Close Low Speed
• Partial Open (Energy Saving) 5-90% Open
• Ratchet (Flip/Flop)
• Acoustic Signal
• Open / Close Break Point Adjustment
• Reversible Circuits (NC/NO)
• Special Operation Functions Incorporated

EMICON Communicator

• Thanks to our ‘EMICON’ wiring interface hub, wiring of accessories, such as sensors, activation devices and safety beams are quick and easy. With 24VDC output provided to power each accessory individually, there is no need for additional transformers. After installation, plugs are detachable without need to rewire each time.

EMICON – Wiring Interface with Battery

1.  24 VAC Power Output
2.  Safety Sensor Monitoring
3.  Emergency Stop
4.  Panic / Emergency Open
5.  Night Switch
6.  E-Lock
7.  Internal Sensor with 24V
8.  External Sensor with 24V
9.  Safety Sensor with 24V
10.  Side Screen Safety with 24V
11.  Rotary Selector – A Input
12.  Digital Selector – B Input

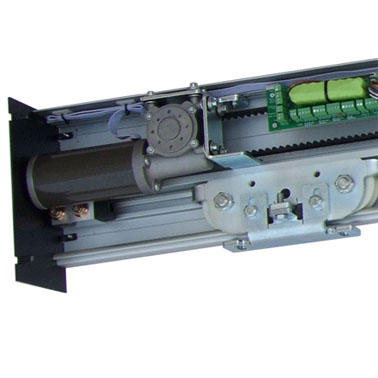

30E Motor Gear

• Compact and powerful motor. High speed acceleration and deceleration is controlled.
  MICOM enclosed hypoid brushless motor gear ensures safe and long term reliable operation for
  enhanced operational cost efficiency.

• High Speed Motor Control (500mm/s)
• 175kg~250kg Load Capacity
• Compact High Precision Gear Box
• Near Silent Acceleration and braking
• Smooth and controlled operation

Monitoring & Safety

• Complies with EU Standard EN16005 – Safety Monitoring EN 13849 (DIN18650). Whereby before any dangerous movement, the operator communicates with its sensors to ensure door safety at all times.
• Together with in-built Battery Monitoring and the ability to review the battery strength via our LED display. We can ensure there is sufficient stored energy in case of any emergency situation. If the battery reaches a low level of stored energy, the door will emit a short beep every 30 seconds and so pedestrian safety is maintained at all times.

Electromagnetic Locking (Option)

• Electromagnetic locking ‘Fail Secure’ MRC1 (LK1) or ‘Fail Safe’ MRC2 (LK2) options are available and can be combined with our battery systems to meet safety and security requirements world wide.

Key Selector Switch

• A Rotary Key function selector switch is supplied as standard. However a Digital function selector switch is also available as upgrade option
• EDM E will not function without either one of our selectors and it is therefore an integral part of our operating system.
• Connected by 2 wires (4 wire for Selector B) into the EMICON hub, all signals are controlled for greater ease of operation. Specifically designed so selection can only be performed by an authorized personnel using secure key provided.

Rotary Key Selector (A)

1. Lock or Off / 2. Exit Only / 3. Automatic / 4. Hold Open

Digital Selector (B – Option)

 1. Lock or Off / 2. Exit Only / 3. Entry Only / 4. Automatic / 5. Hold Open / 6. Partial Open

Delivery

EDM 30E Series – Available from within Europe in formats as follows:

• ‘COMPLETE OPERATOR’ consisting of: Base Rail, Cover, Control Box, EMICON Board, Motor Gear Box, End Covers, Tooth Belt, Belt Bracket Link Assembly, Belt Connection Single & Double Door, Idle Pulley Assembly, Hanger Roller Brackets x4 and Stopper x3
  (COMPLETE OPERATOR – Standard Rail Length: Single Leaf – 3000mm, Double leaf – 6000mm)

Accessories

Designed for use with a new range of European Standard (EN16005) sensors such as BEA IXIO-S & Optex 0A-Axis-T.

When used without Monitoring function turned on, can also accept all current sensors available in the world market today, such as BEA Eagle & Optex OA-203C together with threshold safety beam protection.
