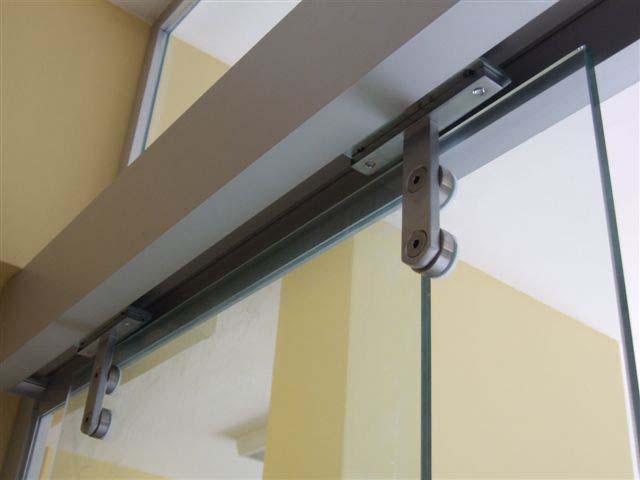

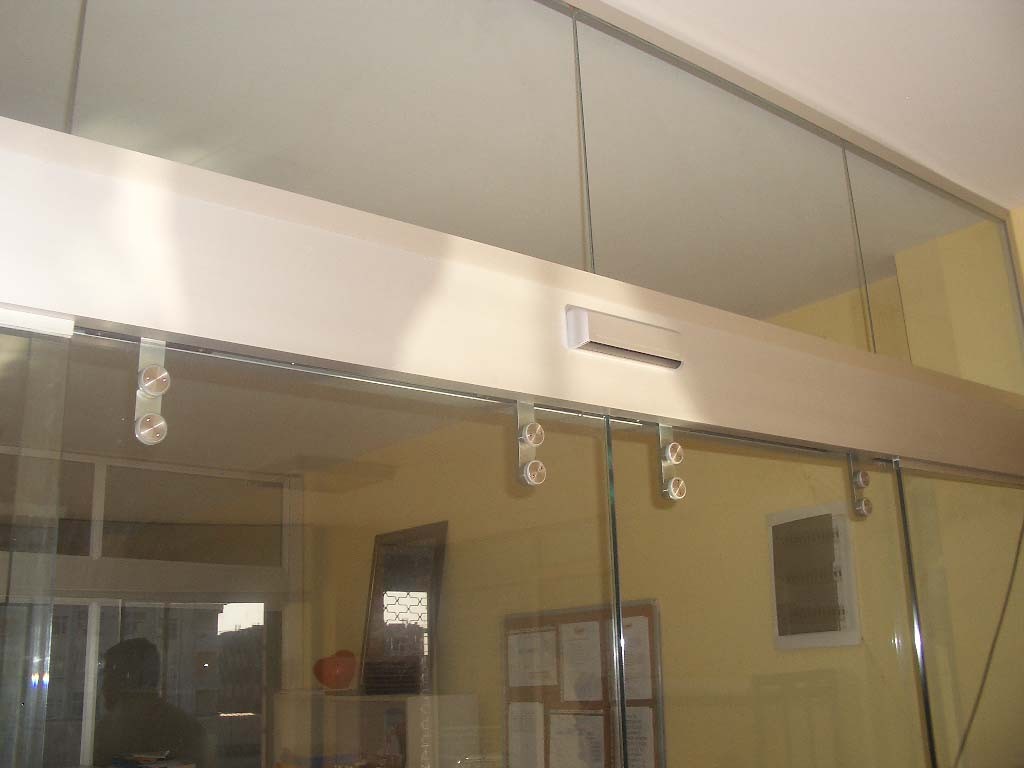

Using our Frameless Glass Fitting together with MICOM automatic sliding door operators or manual sliding door closers. A stylish frameless glass finish can be achieved.

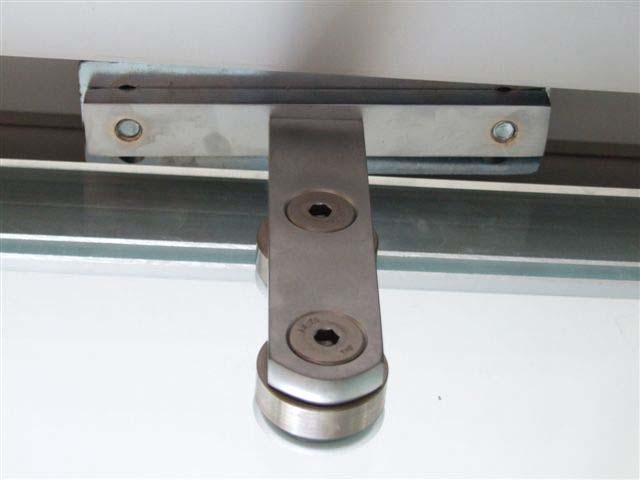

A modular part fixed directly to the hanger bracket will allow a glass leaf to suspend from the operator.
Securely holding glass doors up to 90kg per leaf, MICOM frameless glass fittings are available in stainless steel.
For glass thickness: 10mm and 12mm
> Available in stainless steel finish for glass doors up to 90kg per leaf
> Supplied as 1 door set, containing x2 Stainless steel glass brackets and x1 Stainless steel U-floor guide
> Glass Thickness : 10mm & 12mm
Introduction
Using MICOM Frameless Glass fitting brackets together with MICOM automatic sliding door operators or manual sliding door closers, an attractive frameless glass sliding door can be achieved.
Ease of Installation

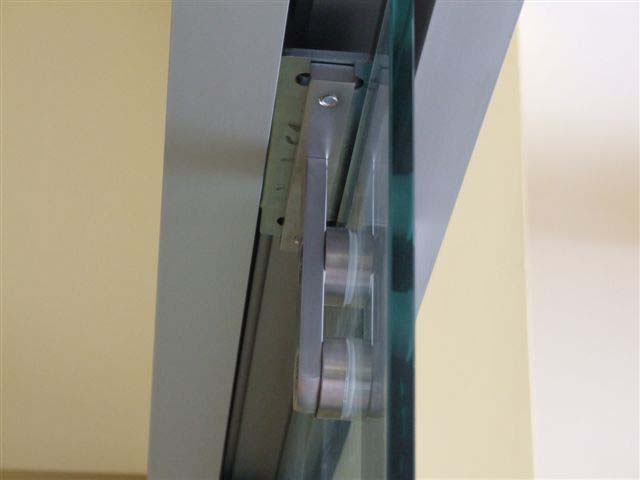

- A modular part fixed directly to the hanger bracket will allow a glass leaf to suspend from the operator. Connection is simple with pre-tapped holes directly in line with hanger bracket fixing points. However care must be taken when cutting holes onto the glass leaf.

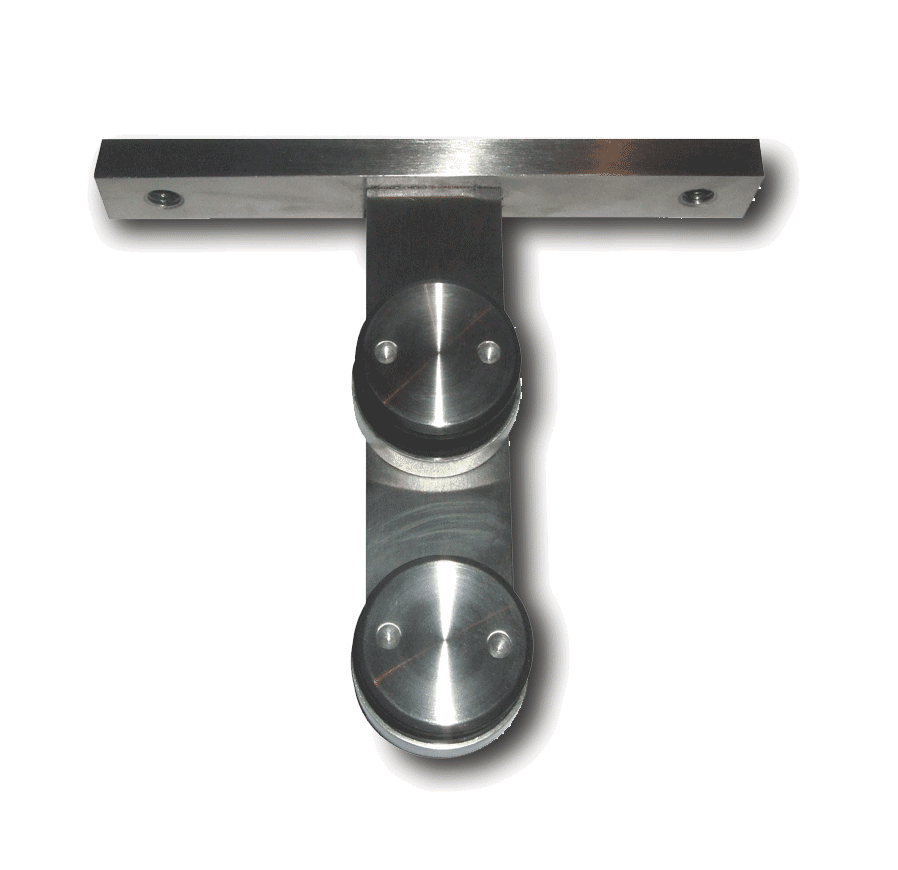

Frameless Glass Brackets
- Available in stainless steel finish for glass doors up to 90kg per leaf.
- Supplied as a 1 door set, containing x2 Stainless steel glass brackets and x1 stainless steel U-floor guide.
- Glass Thickness: 10mm & 12mm

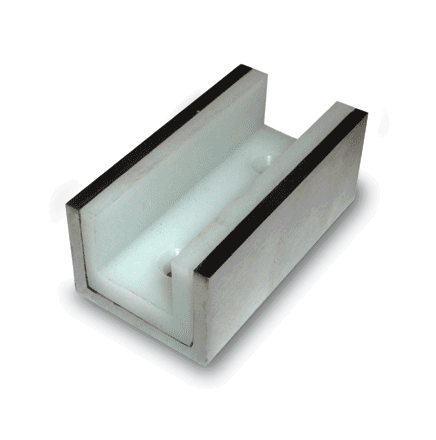

Floor Guide
- Specially designed in stainless steel with a vinyl inner guide.
Delivery
Frameless glass bracket set available from Japan or China in as follows:
- 1-49pcs available from Japan together with MICOM sliding door operator or manual slide door order.
- + 50pcs order directly ex-works China
