Full Glass – 25mm Profile

Full Glass 25mm Door Profiles have been specifically designed to compliment any project. Installation is simple and efficient together with MICOM automatic sliding door operators.

Fixed and moving leaves can be manufactured to your exact project requirements and supplied as a Full KIT for assembly locally, complete with profiles, screws, rubbers and brushes.

Also available in stock lengths as required.

Finished in clear anodised, painted white or bronze as standard, with stainless steel cladding and high quality colour painted finishes available as options.

Door Features

  • Slim Frame 25mm x 50mm Profile thickness available as KIT or Stock Lengths
  • 10 – 12mm Glass Thickness
  • Clear anodised, white or bronze as standard. RAL colour available
  • Fully furnished with rubber seals for glass fitting, as well as brushes for environment control

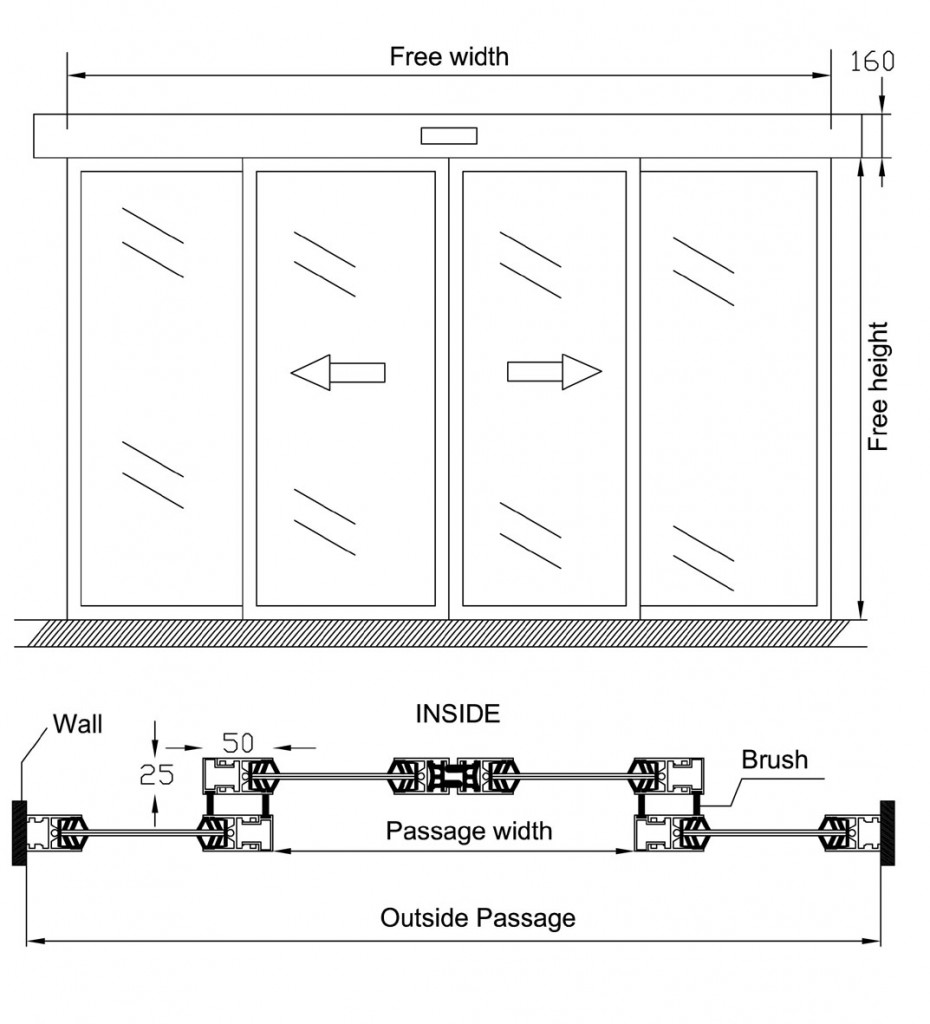

  • Floor guides available to suit25mm door profile drawing

How to Order

  • E-mail measurements or project drawing
  • Quotation based on information supplied
  • Delivery subject to acceptance

Moving Leaf – 25mm x 50mm

  • Compete with fixing plates in top profile, designed for easy connection to any MICOM Door Operator.
  • Profile construction is securely fixed at each corner to ensure straight alignment and durable usage.
  • U-Channel for Floor Guide in bottom profile.

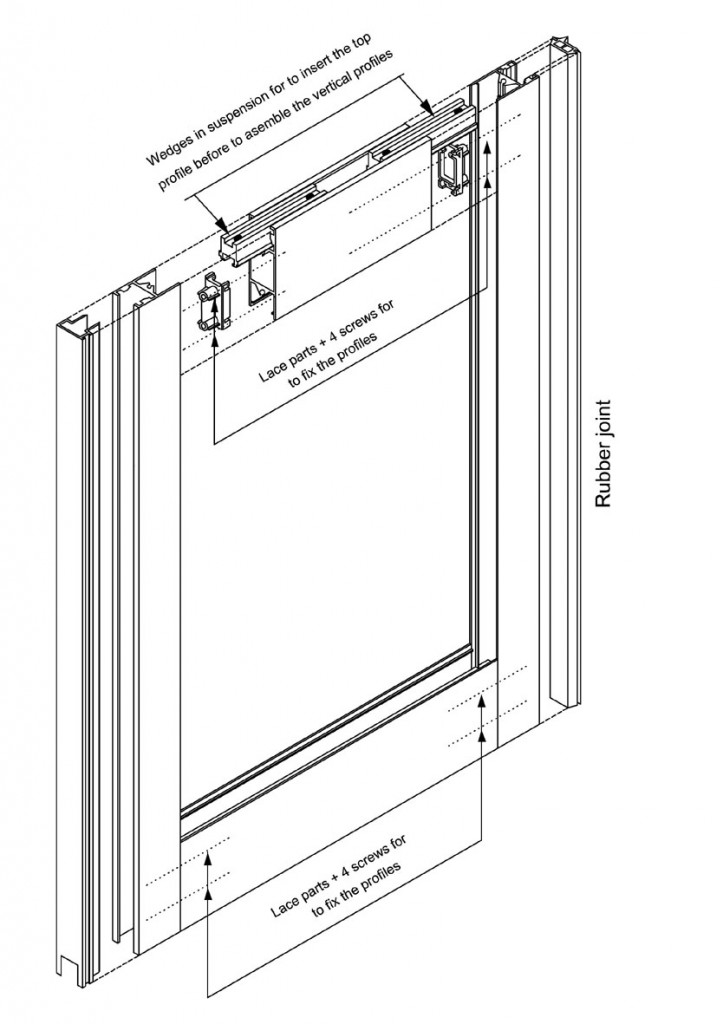

25mm door profile drawing_sliding


Fixed Leaf – 25mm x 50mm

  • Secured to wall, floor and ceiling.
  • U-channel available to assist vertical wall or horizontal ceiling installation.
  • Profile construction is securely fixed at each corner to ensure straight alignment and long term stability

25mm door profile drawing_fixed
