New and Exclusive pioneering technology from Japan.
MM30 Magnetic linear automatic sliding door operators offer new clean technology with super-silent motion for internal sliding door applications.
Since motion force is very low, the sliding door can be safely used by all, including the elderly, small children and people with disabilities. As there is no belt drive, without power the door is very light to the touch.
Utilised for a range of applications such as in hotels, hospitals, clinics, schools, to stores, liabries, offices, factories and in the home.
CE compliant, meeting low energy requirements of European norm EN16005.
Utilising advanced Magnetic Linear Drive technology, MM30 forms the beginning of a new era in door automation. A magnetic linear drive sliding door solution is now possible. MM Series offers easy open and close operation with a host of features and benefits.
> Ultra quiet & smooth
> Clean technology
> Safety features inbuilt
> Gentle motion
> Push & go
> Hold Open
> Free door
> Energy saving (partial open)
> Ratchet (flip flop)
> Electromagnetic lock (option)
> Easy accessible inputs
> CE compliant
> Low Energy
Design – MM magnetic linear sliding door operators are a new mechanism, driven from the attraction and repulsion between the a magnet and coil.
Quality – Highly reliable, using only quality electronic parts, MM Series magnetic linear door operators are designed and manufactured in Japan.
Installation – Installation is simple and achieved in several steps with all parts installed directly into the rail, greatly reducing time spent at site.
Set-up – Door stroke is memorised one-time during initial installation or for servicing requirements. There is no need for the operator to re-learn each time the main power is turned on.
Operation – Magnetic linear sliding door operators can be activated by either a sensor or push button input or by ‘push & go’. Once the door has silently moved open and after the open time has elapsed, the door will close all the while being protected by its threshold safety detection system, before breaking for a soft close at the final closed position. With a number of door functions that can be selected by handling the door.
Silent – As the need for mechanical parts have been greatly reduced, MM Series will glide open and closed in near silence. Employing reinforced resin rollers and an aluminium rail to further eliminate excessive noise.
Clean – Without a belt drive system and other parts associated with friction and wear, particle production from friction has been greatly reduced. Therefore MM magnetic linear sliding door operators are highly suitable in areas which are particularly dust sensitive.
Safe & Friendly – Equipped with a very sensitive touch detection system, should the door hit any obstruction, the force of impact is incredibly light. This is followed by an immediate safety return to ensure pedestrian safety is maintained at all times. On returning to the point of impact, the door will slow to ensure the obstruction has been safely cleared.
Delivery – MM30 model is available only as a pre-assembled sliding door operator system.
Suitability – Light Commercial and Domestic: For installation in Hotels, Hospitals, Shops and Stores, Liabries, Schools, Offices, Factories and in the Home.
Compliance – MM Magnetic linear sliding door operators are CE compliant and meet low energy requirements of European norm EN16005.
Introduction
EDM MM Magnetic Linear sliding door operator opens a new era of door automation. Using our new microprocessor control and magnetic linear motor drive system, EDM MM Series can adapt effortlessly to varied door widths and weight capacities up to 30kg per leaf with ease.
Ease of Installation
- As a fully enclosed operator, MM30 can be installed directly into the door frame. By simply fixing the door and connecting power, MM30 will provide ultra silent and friendly, long term door operation.
MM30 Magnetic Linear Operator

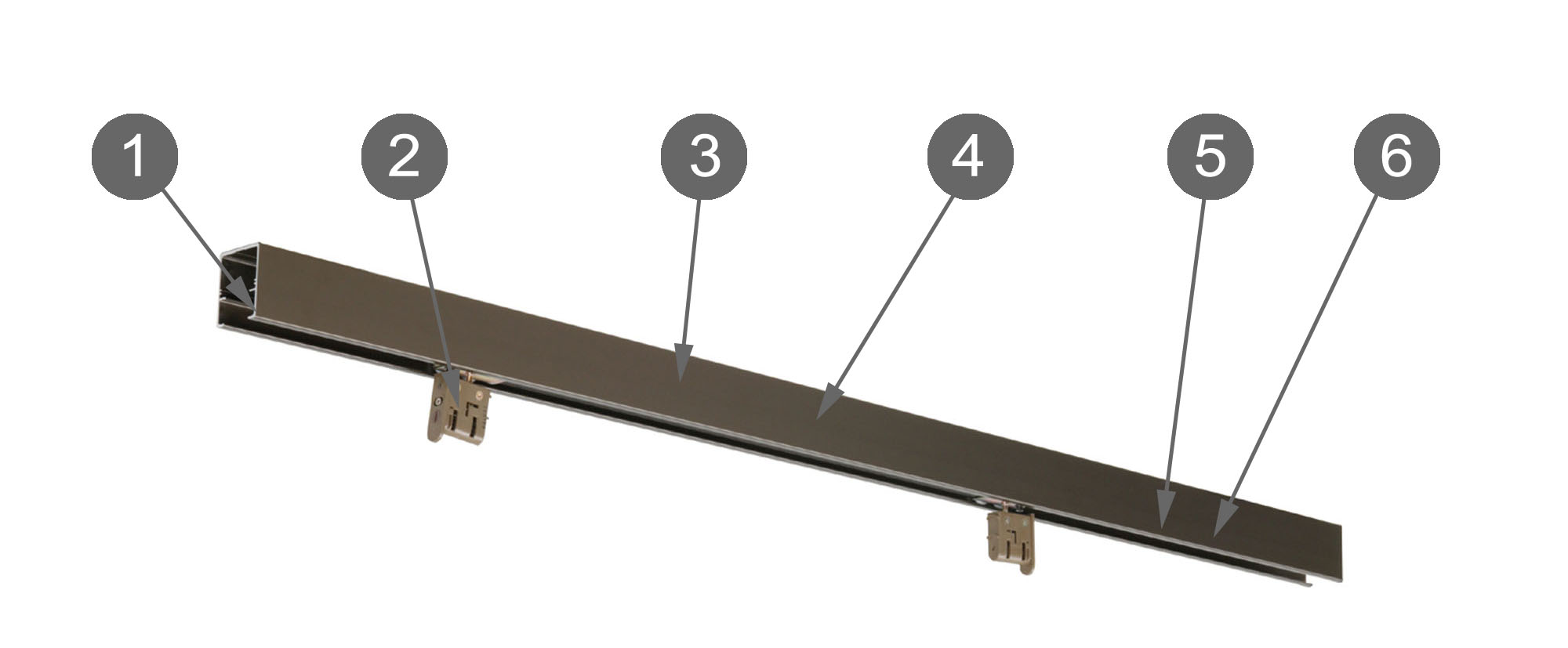

1. Base Rail
2. Hanger Bracket
3. MM Control Box (Enclosed)
4. Magnet Linear Motor (Enclosed)
5. Moving Magnet (Enclosed)
6. Power & Sensor Input
Applications

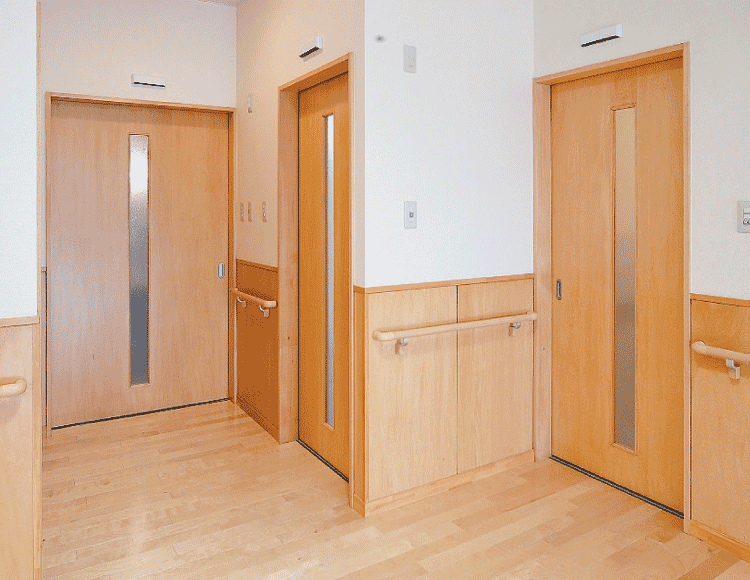

- MM30 Magnetic Linear Operator is utilized for internal sliding doors upto 30kg. It’s silent and smooth operation is ideal for office and home use. Our no touch, clean technology can be used in all areas including factories and restaurants, to health care facilities, clinics and toilets.
New Clean Technology
- MM30 will maintain a clean environment being particularly suitable for clean rooms, hospital intensive care facilities to operating theatres, food factories and other locations, which are dust and dirt sensitive. Since many points of friction associated with regular automatic doors are reduced, MM80 has less wearing parts and so produces less dust particles.
- Conventional Motor & Belt Drive Operator
A belt is connected to the door and driven by a rotary motor incorporating a pulley system. In this way there are many points of friction, wear and particles thrown out.
- MM30 Magnetic Linear Operator
The Magnet is fixed onto the door without contact to the electromagnetic motor. The door is operated by attraction and repulsion between magnets, resulting in less points of contact, wear and particle production.
Super Silent
- MM30 Linear magnetic operator will silently glide open and closed. In test conditions, MM30 is quieter than a telephone or back ground noise in a office or library
| Source | decibel dBA |
| MM Linear Door Operator | 47* |
| Telephone Ringing | 70 |
| Quiet Office (Ambient Noise) | 50 |
| Library (Ambient Noise) | 40 |
| * MM50 Factory Tested - 1m from unit | |
Friendly Functions

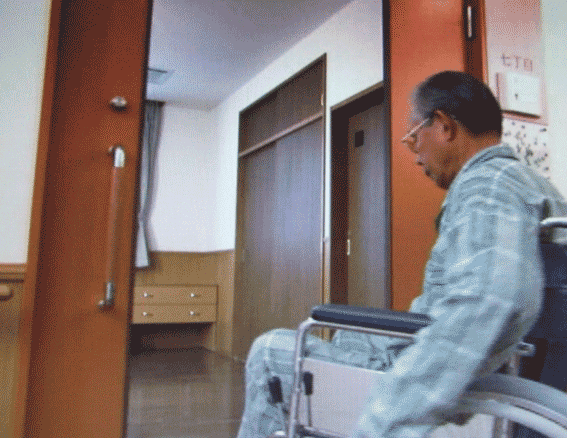

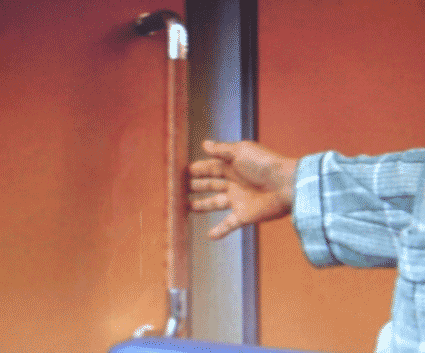

- Activation by Hand (Push & Go) – By simply pushing the door in the open direction for 2cm, the operator will gently and silently perform its automatic cycle. This is ideal for domestic and health care applications as shown.
- Hold Open by Hand – By holding the door in the full open position, an audible signal will be heard. The door is now in Hold Open. To close, again simply pull the door, no more than 2cm and the door will automatically close.
- Free Stop – Once door is in motion, hold the door (by handle if fitted) at any position before it reaches the full open position. The door will stop and be free to move by hand as a manual sliding door. To re-activate, return the door to full closed position.
- Partial Open – Partial Open is adjustable by the Partial Open adjuster. Adjustable range 0 = 50% to 10=100% Open. Factory Setting at 100% Full Open. Partial open is a fixed setting by control. The use of a Partial Open Switch Selection is not applicable. Partial Open % setting is effective after activation through SS input. When activation by hand (Push & Go), Partial Open % setting is ignored and door opens to 100% Full open.
- Ratchet Switch (Flip-Flop) – By use of activation switch, the door opens once and remains open for an unlimited time. The door is then closed upon a second activation. (Switch to Open/Switch to Close)
- Safe Door – In case of power failure, the door is free to open by hand without any resistance.
Safe & Gentle
- MM30 Magnetic Linear Operator is constantly monitoring door speed and its position.
- Equipped with a very sensitive touch detection system, should the door hit an obstruction, the force of impact is incredibly light.
- Then followed by an immediate safety return to ensure pedestrian safety is maintained at all times.
- The operator then closes at low speed looking for the obstruction.
Images show a comparison of closing force between MM magnetic linear and any belt driven door.
| Model | MM30 |
| Door Capacity | 15 ~ 30kg |
| Applicable Door Width | 700 ~ 2250mm |
| Open Speed | 500mm/s Fixed |
| Close Speed | 200mm/s Fixed |
| Power Supply | 100VAC |
| Noise Level | Less than 50dba |
| Motor | Magnetic Linear |
| Control System | Microprocessor Control |
| Open Timer | 1 or 5sec Selected by Switch |
| Activation | By Sensor Signal or Push & Go |
| Safety Functions | Obstruction when Opening : Safety Stop Obstruction when Closing : Safety Return. Slow close until obstruction is cleared |
| Partial Open / Energy Saving | N/A |
| Safety Sensor | The operator is equipped with a built-in threshold safety sensor. |
| Hold Open | By holding the door at its full open position for more than 3sec., door will remain open. Pull the door to activate close cycle. |
| Ratchet / Flip Flop | Activate to Open / Activate to Close |
| Breaking | Adjustable by door weight |
| Operation Environment | Ambient Temperature -10C to +40C (no condensation or icing) Ambient Humidity 30% to 85% RH (no hazardous materials must be present in the atmosphere) |
| Compliance | Machinery Directive 2006/42/EC |
| Low Voltage Directive 2006/95/EC Electromagnetic Compatibility Directive 2004/108/EC |
