Spring Hinge – 35kg Max for wooden, aluminium & steel doors. Available for left & right opening.
| Model Number | Door Size (mm) | Door Weight (kg) | Closing Force (N-m) | Stop Mechanism | Location of Stop | Max Opening Angle | Surface Colour | ||||
| Right Hand | Left Hand | W | H | D | |||||||
| 1111R | 1111L | 850 (max) | 2000 (max) | 30 (min) | 35 (max) | 7.9 | X | X | 180 Left or Right One-side Opening |
Sliver | |
| 1111SR | 1111SL | O | 85 | ||||||||
| 1121R | 1121L | X | X | Bronze | |||||||
| 1121SR | 1121SL | O | 85 | ||||||||
| Empty Hinge | 1110R | 1110L | X | X | X | Sliver | |||||
| 1120R | 1110L | Bronze | |||||||||
Installation
1. The door and frame materials to which the hinge is to be fitted should be of hard wood such as lauan or harder.
2. Because the attached screws for fitting are 25mm long, the thickness of the frame should be over 25mm.
3. Allow at least 5mm of space between outer edge of door and frame.
4. Body material: Aluminium
Surface treatment:
Sliver (anodic oxide coating)
Bronze (baked epoxy resin coating)

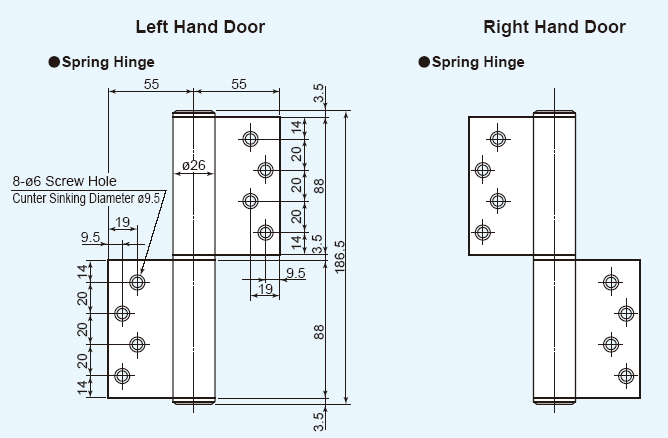

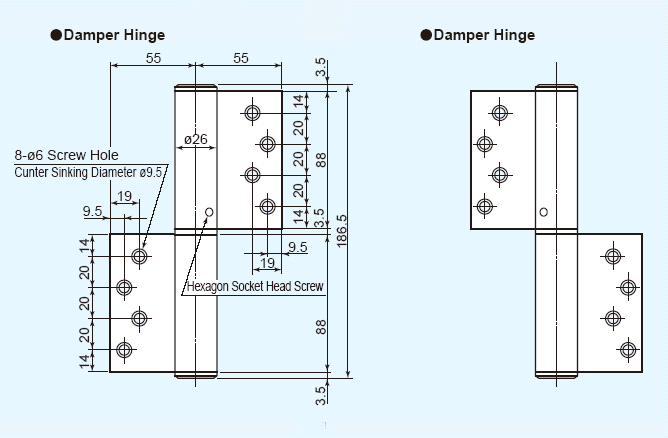

External Dimensions

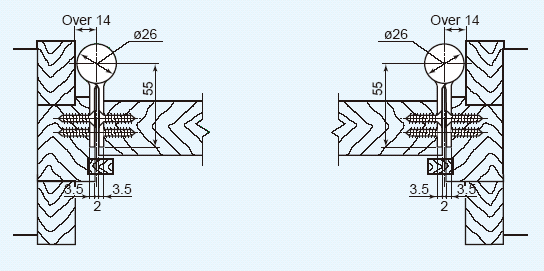

Fitting
