Spring Hinge – 35kg Max for wooden, aluminium & steel doors. For surface mounted. Available for left & right opening.
| Model Number | Door Size (mm) | Door Weight (kg) | Closing Force (N-m) | Stop Mechanism | Location of Stop | Max Opening Angle | Surface Colour | ||||
| Right Hand | Left Hand | W | H | D | |||||||
| 1211R | 1211L | 850 (max) | 2000 (max) | 30 (min) | 35 (max) | 7.9 | X | X | 180 Left or Right One-side Opening |
Sliver | |
| 1211SR | 1211SL | O | 85 | ||||||||
| 1221R | 1221L | X | X | Bronze | |||||||
| 1221SR | 1221SL | O | 85 | ||||||||
| Empty Hinge | 1210R | 1210L | X | X | X | Sliver | |||||
| 1220R | 1210L | Bronze | |||||||||
Installation
1. For the wing fitting position on the door and frame, a steel plate of over 2.3mm thickness and 300mm length must be used as a reinforcing material.
2. Use the screws included in the package for installation.
3. Allow at least 5mm of space between outer edge of door and frame.
4. Body material: Aluminium
Surface treatment:
Sliver (anodic oxide coating)
Bronze (baked epoxy resin coating)
External Dimensions

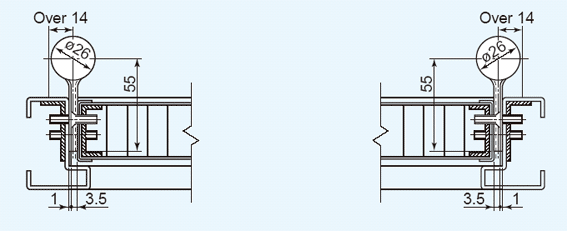

Fitting
