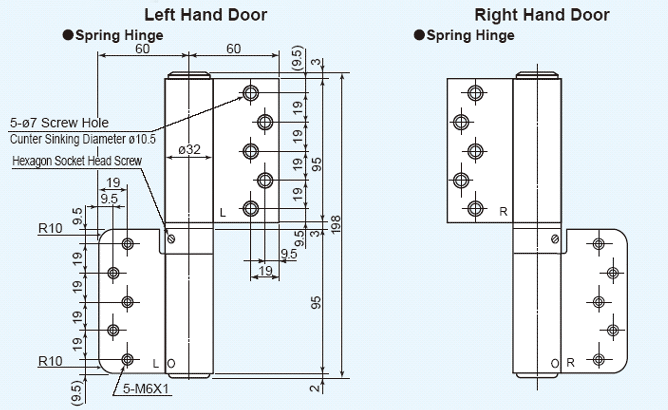

Spring Hinge – 40kg Max for wooden, aluminium & steel doors. For steel framed doors. Available for left & right opening.
| Model Number | Door Size (mm) | Door Weight (kg) | Closing Force (N-m) | Stop Mechanism | Location of Stop | Max Opening | Surface Colour | |||
| Right Hand | Left Hand | W | H | D | Angle | |||||
| 122R-T | 122L-T | 900 (max) | 2100 (max) | 30 (min) | 40 (max) | 10.0 | X | X | 180 Left or Right One-side Opening |
Sliver |
| 122SR-T | 122SL-T | O | 85 - 150 | |||||||

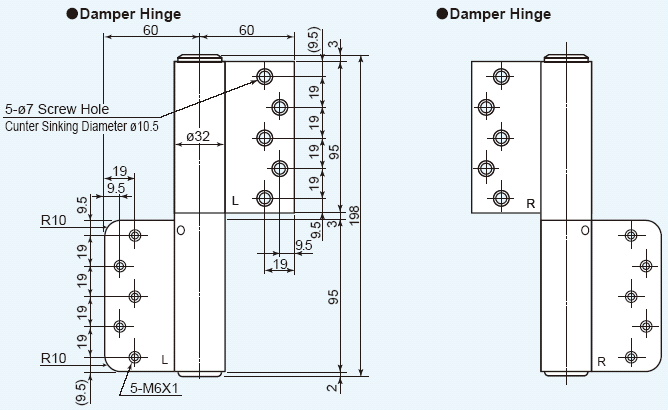

| Empty Hinge, 120R-T | 120L-T | X | X | X | ||||||
Installation
1. For the blade-fitting place on the frame, a steel plate of over 2.3mm thickness and 300mm length must be used as a reinforcing material.
2. For the blade fitting on the frame, use M6 flat screws. (Avoid installation by welding).
3. For the blade fitting place on the door, use a hard wood such as launan or harder.
4. The door and frame materials to which the hinge is to be fitted should be of hard wood such as lauan or harder.
5. Allow at least 5mm of space between outer edge of door and frame.
6. Surface treatment is by baked coating of melamine resin.
7. Always allow for a doorstopper to prevent the door from opening wider than 180°.

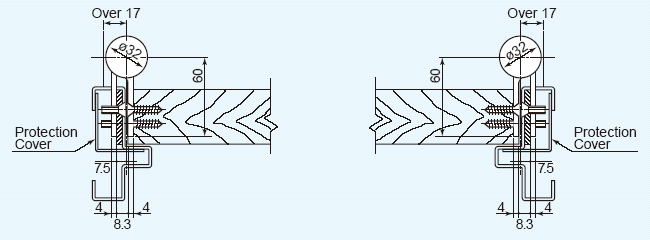

Fitting
