Spring Hinge – 60kg Max for steel door & steel framed door.Available for left & right opening.
| Model Number | Door Size (mm) | Door Weight (kg) | Closing Force (N-m) | |||
| Right Hand | Left Hand | W | H | D | ||
| 143R-T | 143L-T | 900 (max) | 2100 (max) | 30 (min) | 60 (max) | 15.0 |
| 143SR-T | 143SL-T | |||||
| Empty Hinge, 140R-AT | 140L-AT | X | ||||
| Model Number | Stop Mechanism | Location of Stop | Max Opening Angle | Surface Colour | |
| Right Hand | Left Hand | ||||
| 143R-T | 143L-T | X | X | 180 Left or Right One-side Opening |
Sliver |
| 143SR-T | 143SL-T | O | 85 - 150 | ||
| Empty Hinge, 140R-AT | 140L-AT | X | X | ||
Installation
1. For the blade-fitting place on the door and frame, a steel plate of over 2.3mm thickness and 300mm length must be used as a reinforcing material.
2. For the blade fitting on the door and frame, use M6 flat screws. (Avoid installation by welding).
3. In case applying to a fire protection door, use model (143R, 143L) with out stop.
4. Allow at least 5mm of space between outer edge of door and frame.
5. Surface treatment is by baked coating of melamine resin.
6. Always allow for a doorstopper to prevent the door from opening wider than 180°.

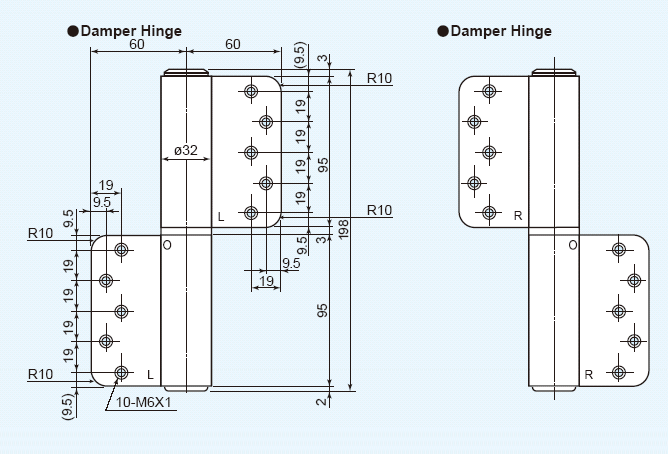

External Dimensions

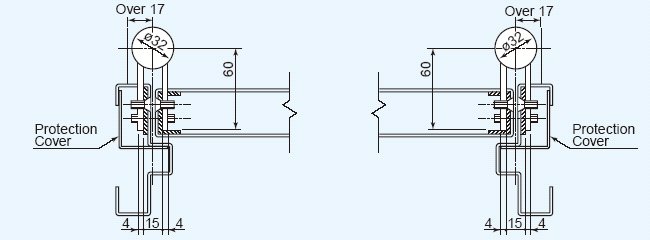

Fitting
