Spring Hinge – 120kg Max for steel doors. Available for left & right opening.
| Model Number | Door Size (mm) | Door Weight (kg) | Closing Force (N-m) | Stop Mechanism | Location of Stop | Max Opening Angle | Surface Colour | |||
| Right Hand | Left Hand | W | H | D | ||||||
| 244R-T | 244L-T | 1200 (max) | 2100 (max) | 40 (min) | 120 (max) | 42177 | X | X | 180 Left or Right One-side Opening |
Sliver |
| 244SR-T | 244SL-T | O | 85 - 150 | |||||||
| Empty Hinge, 240R-AT | 240L-AT | X | X | X | ||||||
Installation
1. For the blade fitting place on the door and frame, a steel plate of over 3.2mm thickness and 300mm length must be used as a reinforcing material.
2. For the blade fitting on the door and frame, use M6 flat screws x6pcs. (Avoid installation by welding) (Not Included).
3. In case applying to a fire protection door, use model (244R-T, 244L-T) without stop.
4. Allow at least 5mm of space between outer edge of door and frame.
5. Surface treatment is by baked coating of melamine resin.
6. Always allow for a doorstopper to prevent the door from opening wider than 180°.

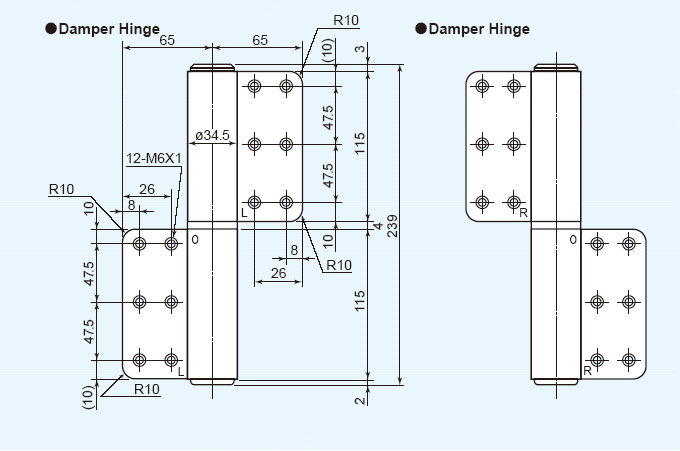

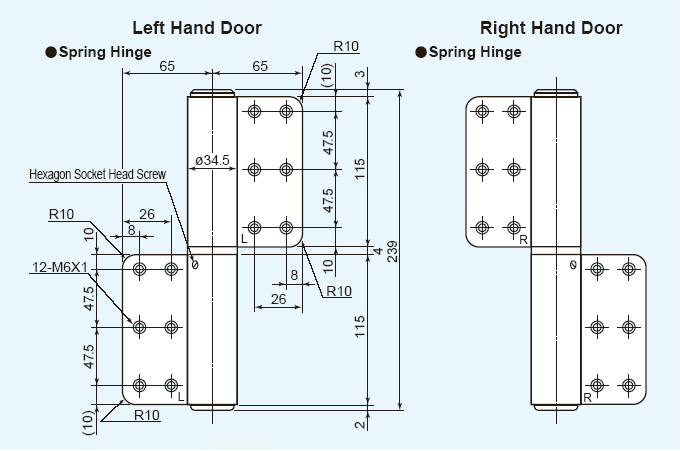

External Dimensions

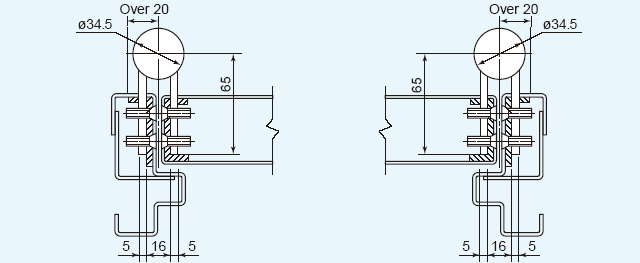

Fitting
