Light internal use only- 30kg Max for wooden, Aluminium & steel doors. Available for left & right opening Doors. (Empty Hinge)
| Model Number | Door Size (mm) | Door Weight (kg) | Closing Force (N-m) | Stop Mechanism | Location of Stop | Max Opening Angle | Surface Colour | ||
| W | H | D | |||||||
| 311S | 800 (max) | 2000 (max) | 30 (min) | 30 (max) | 5.0 | O | 85 - 180 | 180 Left or Right One-side Opening |
Sliver Gold Bronze Ivory |
| Empty Hinge, 310 | X | X | X | ||||||

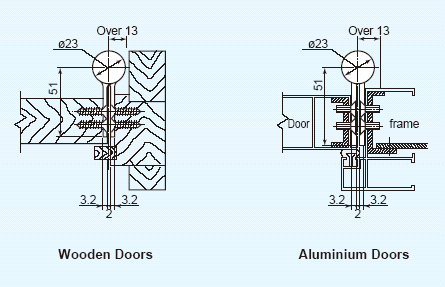

Installation
1. Surface treatment is by baked coating of melamine resin.
2. When using them on wooden doors, use lauan or harder wood.
3. The tapping screws furnished with the products are designed specifically for installation are 25mm long. If the frame is wooden, use a frame at least 25mm thick. If the aluminium, lightweight steel door is involved, use steel screws (flat screw M5)
4. Allow at least 3mm of space between outer edge of door and frame.

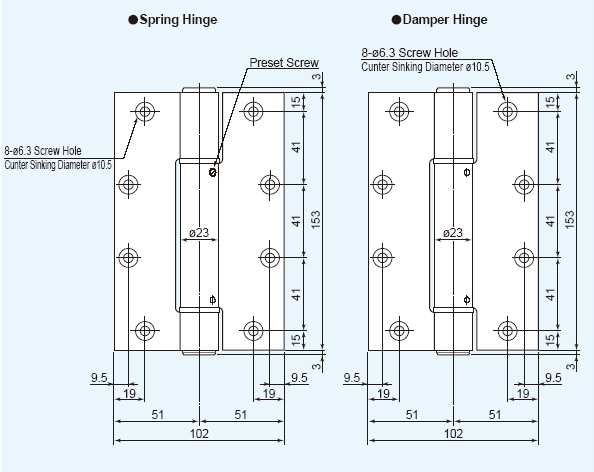

External Dimensions
