Model NK153 (TRI-SET)

Spring Hinge – 80kg Max for Glass Doors. Available for left & right opening.

Model Number Door Size (mm) Door Weight (kg) Closing Force (N-m) Stop Mechanism Location of Stop Max Opening Angle Surface Colour
Right Hand Left Hand W H D
NK153R
(TRI-SET)
NK153L
(TRI-SET)
1000 (max) 2200 (max) 8
10
12
(min)
80 (max) 20.0 X X 180 Left or Right
One-side
Opening
Sliver & Bronze
NK153SR
(TRI-SET)
NK153SL
(TRI-SET)
O 85 - 150
Empty Hinge, NK150R NK150L X X X

Installationah_leftandright

1. The door and frame materials to which the hinge is to be fitted should be of hard wood such as launan or harder.
2. Surface treatment is by baked coating of melamine resin.
3. The attached screws for fitting are 5x35mm. The thickness of the frame should be over 35mm.
4. Allow at least 5mm of space between outer edge of door and frame.
5. Always allow for a doorstopper to prevent the door from opening wider than 180°.




External Dimensions

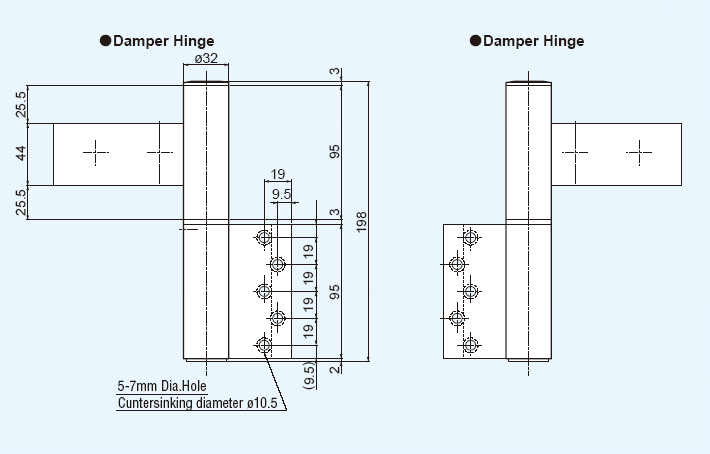

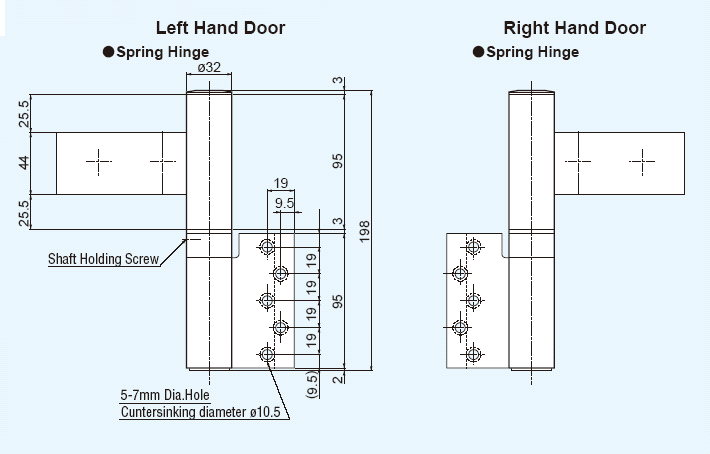

ah_nk_drw_1 ah_nk_drw_2

Fitting

ah_nk_drw_3
