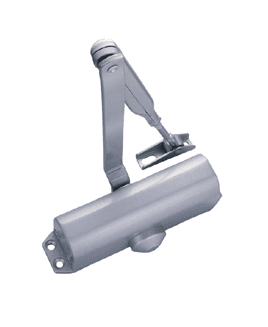

NHN300 is the best door closer in the world
Economical model with accessories. EN Standard Closer. Power adjustable No.2 to No.4 by position. EN Fire Tested.
Power Shoe Arm Bracket – Designed to be reversed to increase final closing power by approximately 15%.
Back Check – Provides a cushion effect when the door is forcibly thrown open but does not serve as a substitute for a doorstop.
Standard Finishes – Sliver, Dark Brown or Gold. Other finishes available on request.
Guarantee – Free replacment ex-works if any closer proved defective by reason either of faulty manufacture or defect in materials.
Model | 300 | |
---|---|---|
Variable Closing Force | Spring Stength (EN) | 2 to 4 |
Standard Doors | < 850mm | <40kg | x |
< 950mm | < 60kg | 300 | |
<1100mm | <80kg | 300 | |
<1250mm | <100kg | 300 | |
<1450mm | <120kg | x | |
Body Dimension (mm) | Length | 178 |
Height | 42 | |
Projection | 64 | |
Arm | Standard | Y |
Parallel | O | |
Track (standard) | O | |
Track (hold-open) | O | |
Rack & Pinion | Y | |
Power Shoe Arm Bracket | Y | |
Angle of Opening | 180 | |
Power Adjustable by Spring | N | |
Power Adjustable by Position | Y | |
Sweep Speed Adjustable | Y | |
Latch Speed Adjustable | Y | |
Hold-Open | Built in | O |
Hold Open Arm | O | |
Back Check | Self Regulating | N |
Adjustable at Valve | O | |
Delayed Action Adjustable | N | |
Non-Handed | Y | |
With Cover | O | |
Application | Regular | Y |
Parallel Arm | O | |
Transom | Y | |
Y = Yes | N = No | O = Option |
