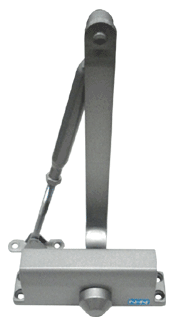

NHN 73 is an Economical EN standard closer without accessories. Power adjustable EN 3 by spring. Door closing strength up to 65kg.
Reliable – The hardened steel rack and pinion mechanism is housed in the alloy aluminium body.
Non-handed – Reversal for both left and right hand doors. Universal applications for standard, top jamb or parallel arm installations (optional parallel bracket).
Versatile – Suitable for both metal and wooden doors.
Adjustable – Closing speed adjustment from 180~15deg by valve 1. Latching speed adjustment from 15~0deg by valve 2.
Standard Finishes – Sliver, Dark Brown or Gold. Other finishes on request available.
Guarantee – A free replacement ex-works if any closer proved defective by reason either of faulty manufacture or defect in materials.
Model | 73 | |
---|---|---|
Variable Closing Force | Spring Strength (EN) | 3 |
Internal Door | < Width 950mm | < 65kg | 73 |
For External Door - Width | < 900mm | Swing OUT |
< 800mm | Swing IN | |
Arm | Standard | Y |
Parallel | O | |
Track (standard) | N | |
Track (hold-open) | N | |
Rack & Pinion | Y | |
Power Shoe Arm Bracket | Y | |
Angle of Opening | 110 | |
Power Adjustable by Spring | Y | |
Power Adjustable by Position | N | |
Sweep Speed Adjustable | Y | |
Latch Speed Adjustable | Y | |
Hold-Open | Built in | N |
Hold Open Arm | N | |
Back Check | Self Regulating | N |
Adjustable at Valve | N | |
Delayed Action Adjustable | N | |
Non-Handed | Y | |
With Cover | N | |
Application | Regular | Y |
Parallel Arm | O | |
Transom | N | |
Y = Yes | N = No | O = Option |

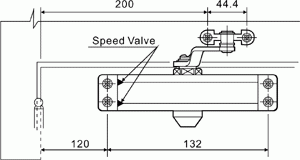

Adjustment
Installation
Standard Top Jamb Installation | |||||
---|---|---|---|---|---|
Model | Interior Door Width (mm) | Exterior Door Width (mm) | Min Kg/f | Door Weight | |
73 | 950 | Swing Out | Swing In | 27426 | Upto 65kg |
900 | 800 |

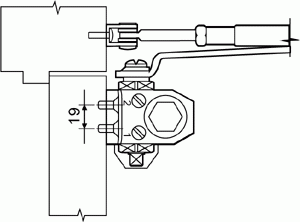

ParallelIinstallation | |||||
---|---|---|---|---|---|
Model | Interior Door Width (mm) | Exterior Door Width (mm) | Min Kg/f | Door Weight | |
73 | 900 | Swing Out | Swing In | 42065 | 60kg |
800 | 700 |
