SCA Series

SCA Series manual sliding door closers are the ideal choice for commercial and domestic sliding pedestrian doors. Working continuously for many years and employed in all types of applications, SCA is a very high quality product.

Sliding doors self close with controlled motion, utilising a simple hydraulic closing mechanism, numerous installation options are available for single, double or telescopic door applications being either wood, steel or aluminum fittings.

Designed specifically to meet the highest demands in world-wide safety.

SCA Series manual sliding door closers incorporate a Hydraulic Door Closer and wire belt system. Once opened by hand, SCA Series will return the door closed, smoothly and gently, with a soft braking at the final closed position. SCA Series is a high quality, manual sliding door closer solution for easy open and close operation, offering a wide range of models and with a host of benefits.

> High quality and reliable sliding door solution
> Safe & long term operation guaranteed
> Wide variety of models
> Quick installation and set up

> Light door opening force
> Smooth & controlled closing

> Braking point and force adjustment
> Hold Open option

Design – Its functional design will allow any sliding door to become self closing. Designed for door panels of either single, bi-parting and telescopic configuration.

Safe – Since opening resistance is very low, the sliding door can be easily be opened by all, including the elderly, small children and people of limited mobility.

Silent – We achieve near silent and smooth motion thanks to reinforced resin rollers and our aluminium rail which eliminates excessive noise.

Quality – Highly reliable, using only quality parts, SCA Series sliding door closer can adapt varied door widths and weight capacities with many models available.

Installation – With all parts installed directly from the front, any component can be moved during or after installation. Parts can also be added or replaced with ease, greatly reducing time spent at site. Adjustment can be achieved simply making MICOM sliding door closers quick to install and setup.

Braking – Closing speed and braking speed can be regulated by its own speed adjustment valve on the door closer body.

Hold Open – The door can also be held in the open position by the addition of a ‘hold open bracket’ fixed to the rail. Once in the hold open position, by simply pulling the door, the closing cycle will begin.

Handing – Both left and right hand sliding door options are available.

Delivery – SCA Series is available from Japan as a pre-assembled sliding door closer or as a component building KIT.

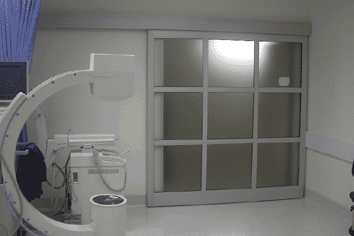

Suitability – Commercial Entrance or Main Door: For installation in Airports, Hotels, Hospitals, Shops and Stores, Liabries, Schools, Office Buildings and Factories and in the Home.

Introduction

SCA Series manual sliding door closers incorporate a hydraulic door closer and wire belt system. Once opened by hand, SCA will return the door closed, smoothly and gently, with a soft braking at the final closed position. With non critical thermostatic valves, a constant closing speed is assured even during extreme temperatures. SCA Series is manual sliding door closer for easy open and close operation. The ideal choice for commercial and domestic sliding pedestrian doors. A very high quality product and ultra-reliable, sliding doors self close with controlled motion. Working continuously for many years and employed in all types of applications.


Ease of Installation

  • With all parts installed directly from the front, any component can be moved during or after installation. Parts can also be added or replaced with ease, greatly reducing time spent at site. Adjustment can be achieved simply making SCA sliding door closers quick to install and setup.

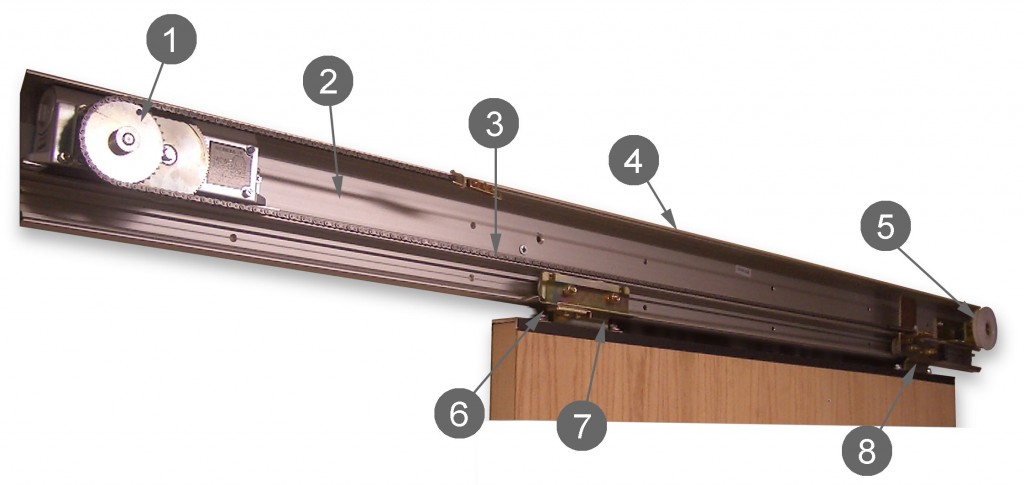

SCA Operator

SCA Series

  1. Hydraulic closer assembly
  2. Rail
  3. Chain belt
  4. Wire belt
  5. Idle pulley wheel & bracket
  6. Hold open bracket
  7. Hanger A
  8. Hanger B

Total Door Control

  • The rotary parts of the door roller are designed to be independent of dust (or moisture), thus ensuring high corrosion resistance and long stability.
  • With non critical thermostatic valves, a constant closing speed is assured even during extreme temperatures.
  • Closing speed and braking speed can be regulated by its own speed adjustment valve on the door closer body.

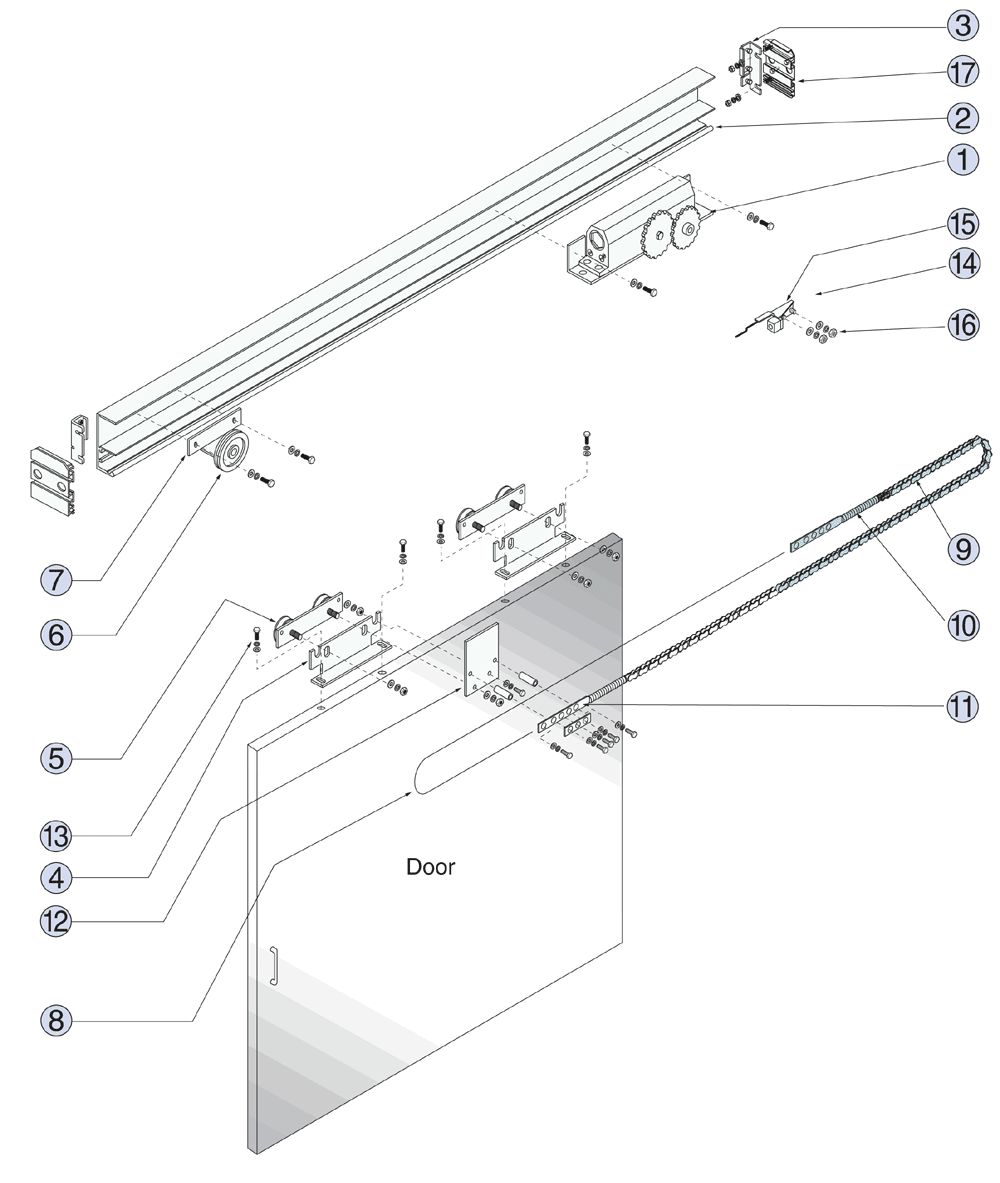

semiauto_sca_diagSummary

1. Hydraulic Closer Assembly
2. Rail
3. Corner Bracket
4. Door Hanger
5. Hanger Roller
6. Idler Pulley
7. Pully Bracket
8. Wire
9. Roller Chain
10. Chain Spring
11. Wire-Chain Connector
12. Bracket
13. Hex. Bolt M8 x 25 (with washer)
14. Hold Open Unit
15. Bolt M8 x 19
16. Hex. Nut M8 (with washer)
17. Corner Bracket






















Suitability – Commercial Entrance or Main Door: For installation in Airports, Hotels, Hospitals, Shops and Stores, Liabries, Schools, Office Buildings and Factories and in the Home. Available also for Bathroom and other environments with high moisture.


Delivery – SCA Series is available from Japan as a pre-assembled sliding door closer or as a component building KIT. The following models within the SCA Series range are available.

Application Installation Type Model Applicable Door Door Stoke (mm)
Door Size WxH (mm) Door Weight (Kg)
General-Purpose
Doors
Flat Bar SCF-20 1400 x 2200 20 1400
SCF-30 30
SCF-50 50
SCF-80 80
SCF-80U 2000 x 2200 100 2000
SCF-120 2000 x 2500 120 2000
SCF-200 200
SCF-200U 2400 x 2500 250 2400
Surface Mounted
(with Cover)
SCA-20 1400 x 2200 20 1400
SCA-30 30
SCA-50 50
SCA-80 80
SCA-80U 2000 x 2200 100 2000
Built-in
(with Sash Cover)
SCB-30 1400 x 2200 30 1400
SCB-50 50
SCB-80 80
Double
Bi-Part Doors
Flat Bar SCF-50D 1200 x 2200 25x2 1200
SCF-80D 40x2
Surface Mounted
(with Cover)
SCA-50D 25x2
SCA-80D 40x2
Built-in
(with Sash Cover)
SCB-50D 25x2
SCB-80D 40x2
Fire Doors
(Japan only)
Flat Bar SCF-50F 1400 x 2200 50 1400
SCF-80F 80
SCF-80UF 2000 x 2200 100 2000
SCF-120F 2000 x 2500 120
SCF-200F 200
SCF-200UF 2400 x 2500 250 2400
Telescopic Doors Flat Bar SCF-30-2SD 800 x 2200 15 x 2 1500
SCF-50-2SD 25 x 2
SCF-80-2SD 1000 x 2200 40 x 2 1900
SCF-80U-2SD 1200 x 2500 50 x 2
SCF-120-2SD 1200 x 2500 60 x 2 2300
SCF-200-2SD 1400 x 2500 80 x 2 2700
SCF-200U-2SD 95 x 2
