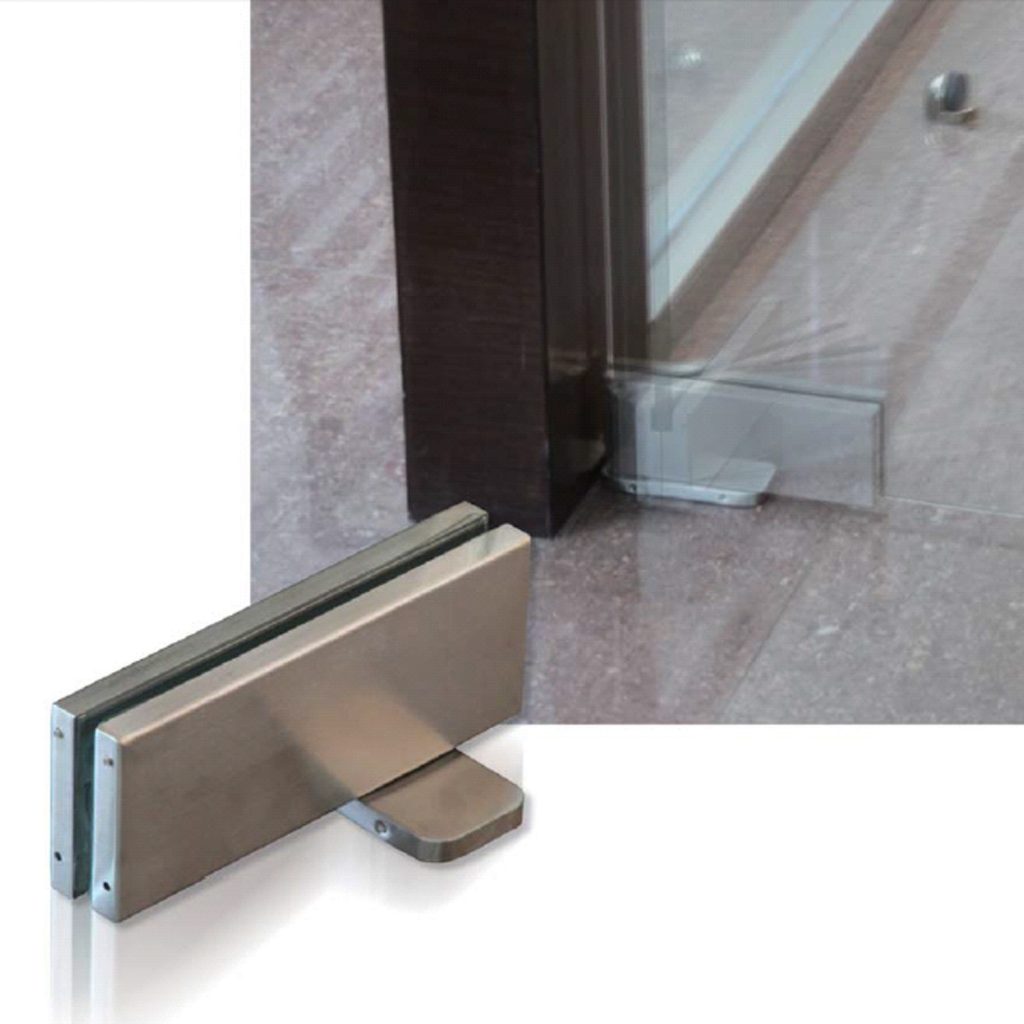

PDC-100 Pivot Door Closers are the first in NHN’s next generation of hidden door closers.
Suitable for 8-13mm thick glass doors
Incorporating the latest cam type technology, PDC-100 pivot door closers offer easy opening with increased efficiency on the closing torque. The closing speed is easily adjustable via two independent adjustment valves.
PDC-100 is a high performance, slim line closer with easy installation, reducing cost and time as there is no floor preparation required.
- Suitable for 8-13mm thick glass doors
- Maximum door 100kg
- Suitable for double action doors.
- Applicable max door 750 – 1000mm wide
- Non handed, quick and easy installation
- Low opening resistance and high closing efficiency
- Simple final adjustment
- Ambient temperature -20°C to 50°C
- Satin and Polished stainless steel (other finishes available on request)
- Complete with top pivot set.
- With or without hold open at 90°
- 5 year guarantee against factory fault.
| Model No. | Function | Door Width | Door Weight | Max Opening Angle |
| PDC100 | Non-Hold Open | 1000mm | 100kg | 150° |
| PDC100S | Hold Open (90°) | 90° |
Introduction

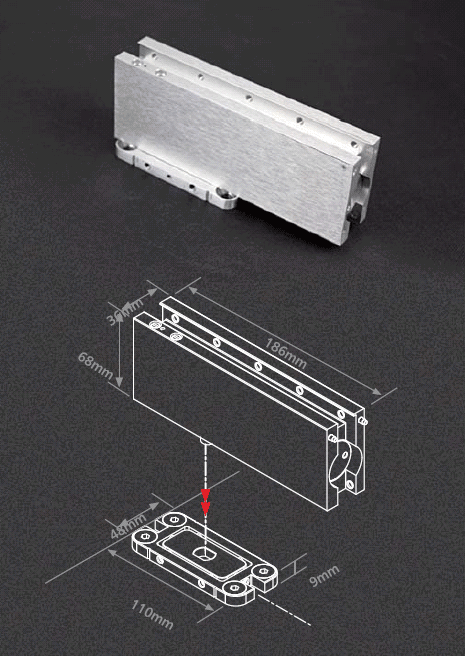

Installation

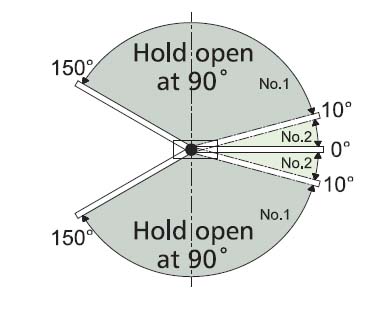

Double action
Non hold open model PDC100 has a maximum opening angle of 150°
Hold open model PDC100S has a hold open position and maximum opening angle of 90°.
Two speed adjustment
Closing speed (150° – 10°)
Latch Speed (10° – 0°)
Efficiency
Providing over 70% efficiency, the NHN PDC100
combines light opening with smooth closing.
Top Pivot Option
TP1 Top Pivot
TP2 Top Pivot
Patch Fitting Option
KPF-1 Corner Patch

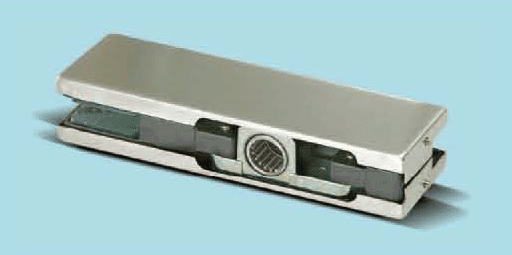

KPF-2 Top Patch

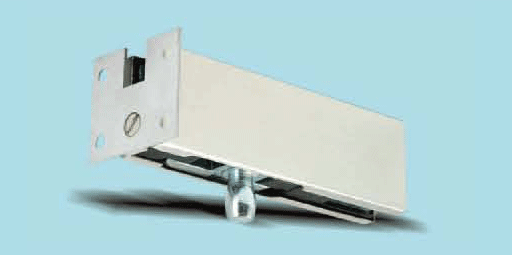

KPF-4 Wall Mounted Transom Patch
