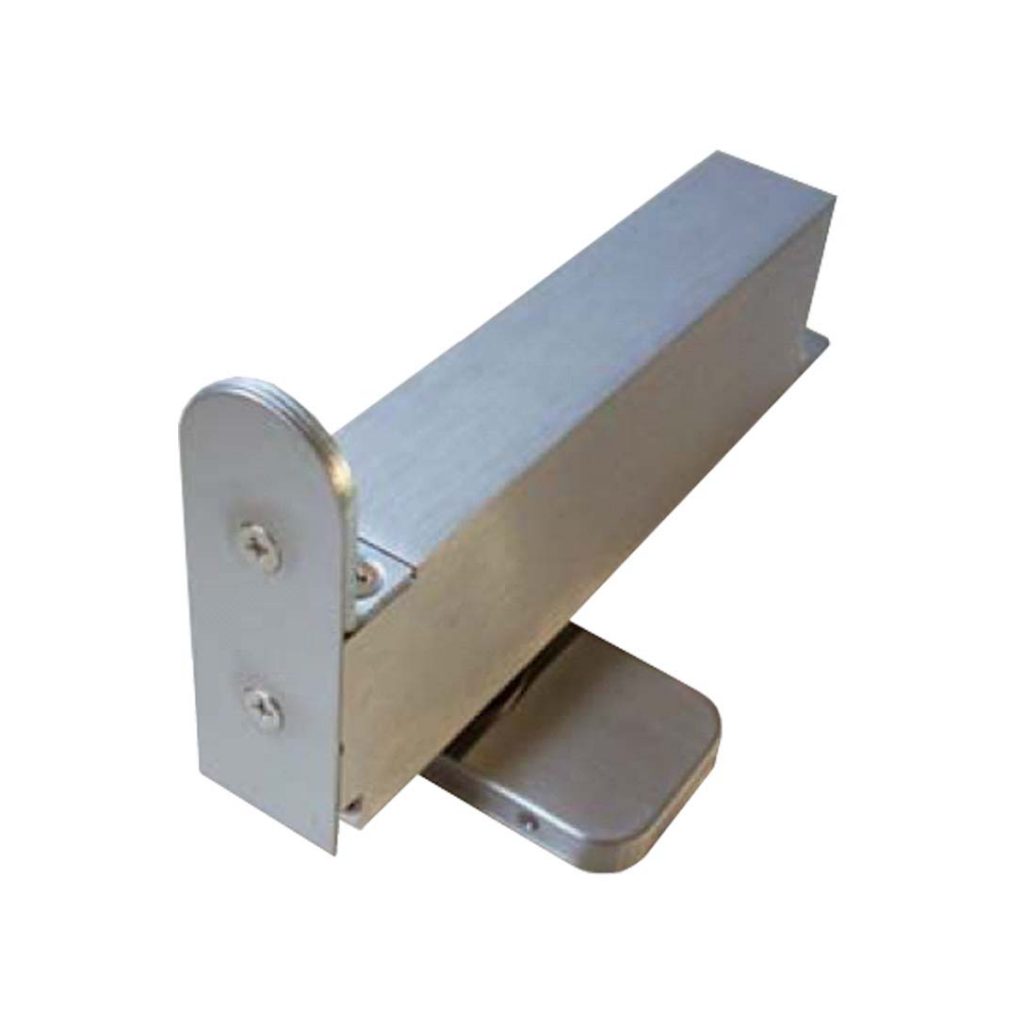

Incorporating the latest cam type technology, PDC105WS , PDC 103WS pivot door closers offer easy opening with increased efficiency on the closing torque. The closing speed is easily adjustable via two independent adjustment valves.
PDC-105WS is a high performance, slim line closer with easy installation, reducing cost and time as there is no floor preparation required
PDC 103WS Applicable Door Width 1000mm
PDC 105WS Applicable Door Width 1250mm
- Suitable for double action doors.
- Applicable max door 1250mm wide
- Maximum door 100kg
- Quick and easy installtion
- Low opening resistance and high closing efficiency
- Simple final adjustment
- Ambient temperature -20°C to +40°C
- Cover plate in satin stainless steel as standard. Polished stainless steel available.
- Complete with top pivot set.
- With or without hold open at 90°
- 5 year guarantee against factory fault.
| Model | Function | Door Width (max) | Max Door Weight (max) | Max Opening Angle (max) |
| PDC103W | Non hold open | 950mm | 100kg | 150 |
| PDC103WS | Hold open 90 | |||
| PDC105W | Non hold open | 1250mm | 100kg | |
| PDC105WS | Hold open 90 |
ntroduction

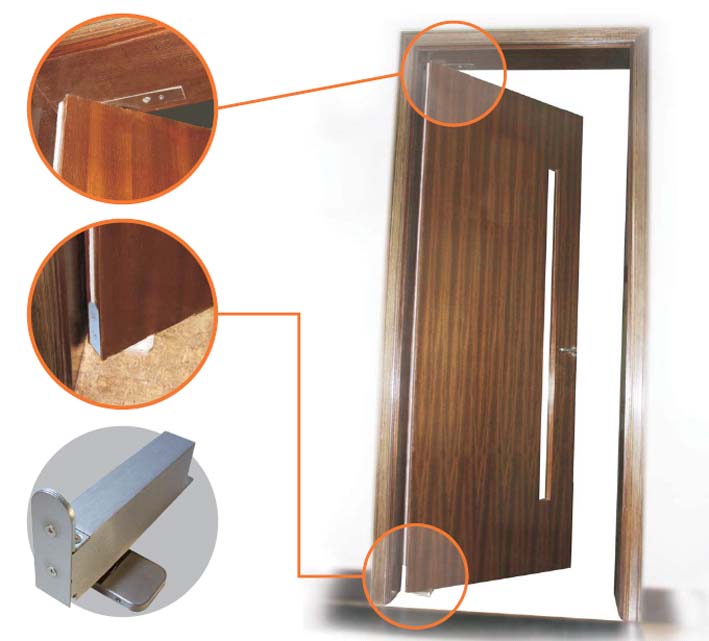

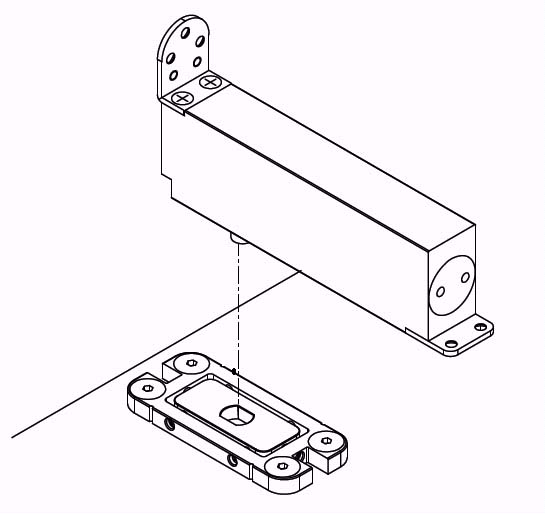

Installation

It is recommended to use a door stop at 150° with the non hold open models and 90° with the hold open models
PDC-103W (S) can be installed on interior doors and it not suitable for exterior doors or door exposed to strong winds. Even for PDC-105W (S) models, please note that due to the comm type technology, heavy winds might cause open of the door to s certain angle.
Double action
Non hold open models PDC103W and 105W have a maximum opening angle of 150°
Hold open model PDC103WS and 105WS have a hold open position angle go 90° with a maximum opening angle of 150°

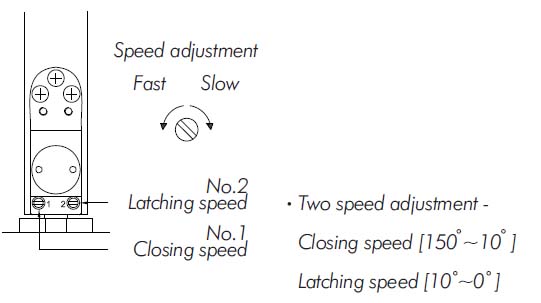

Two speed adjustment
Closing speed (150° – 10°)
Latch Speed (10° – 0°)

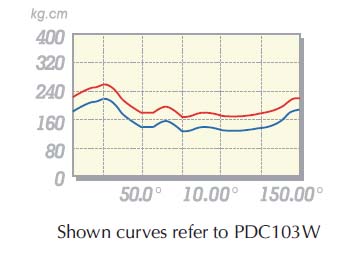

Power Efficiency
Providing over 70% efficiency, the PDC100W combined light opening with smooth closing.

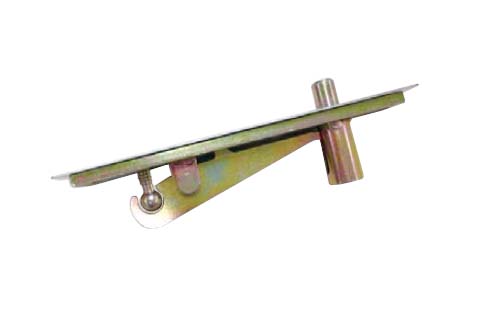

TP2 Top Pivot

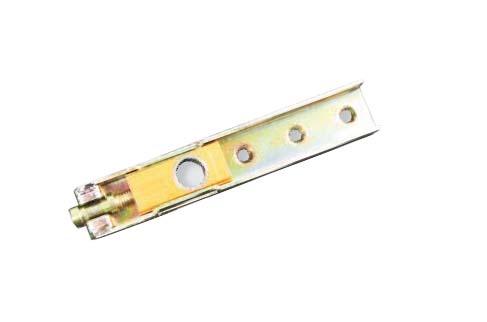

Door Part of Top Pivot Set

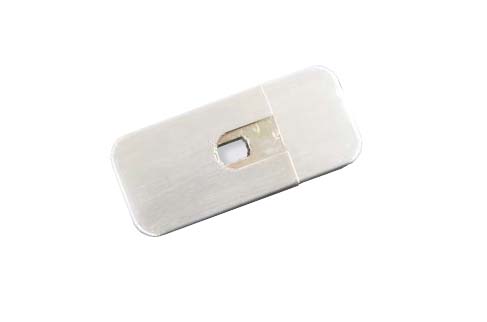

PDC100W FPCP Fixing Plate

With Stainless Steel Cover

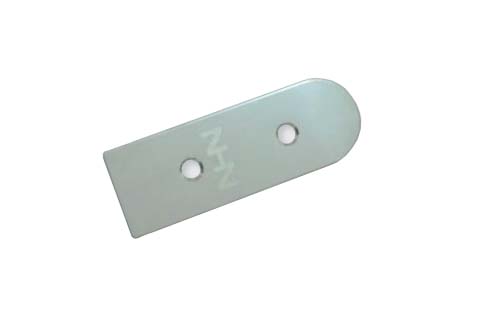

PDF100W CP

Stainless Steel Cover Plate
