EDM 14Eco automatic sliding door operators are a high quality and economical choice for commercial pedestrian doors. Its compact size and functional housing design will compliment any installation project.
Designed specifically to meet the tightest budget, EDM 14Eco is truly cost effective with a host of features and benefits, continuing to utilizing our advanced microprocessor technology.
Meeting the highest demands of the European market, EDM 14Eco is CE, TUV and EN16005 compliant.
Utilising our advanced Microprocessor control technology together, with a highly reliable Brushless motor, EDM 14Eco is a high quality and economical choice for commercial automatic sliding pedestrian doors. Offering easy open and close operation with a host of features and benefits.
> Economical & cost effective sliding door solution
> Power input 100-240VAC (50/60hz)
> Open Speed 500mm/s
> Weight Capacity 70kg per leaf
> Memorized one time teaching stroke
> Easily accessible sensor and threshold safety inputs
> 24V DC power output for accessories
> LED Digital control display
> Wide parameter adjustment
> Energy saving (partial open) function
> Emergency Stop
> Ratchet or flip flop function
> Battery open or close with battery monitoring as standard
> Electromagnetic lock (fail safe or fail secure) option
> Safe & long term operation guaranteed
> Selector function switch supplied as standard
> EN16005, TUV & CE compliant
Design – Its compact size and functional housing design will compliment any installation project. Designed to automate door panels of either single of bi-parting configuration.
Quality – Utilising our advanced microprocessor control technology, with a highly reliable brushless motor, we achieve near silent and smooth motion. Using quality electronic parts, EDM 14Eco automatic sliding door operators adapt effortlessly to varied door widths and weight capacities.
Installation – Installation is simple and achieved in several steps with all parts installed directly onto the rail from the front, meaning any component can be moved easily during or after installation. Parts can also be added or replaced with ease, greatly reducing time spent at site. Adjustment can be achieved simply, making MICOM sliding door operators quick to install and setup.
Wiring – Quick plug-in wiring hub ‘Emicon’ interface board offers a faster means of accessory connection. Communication of all accessory and safety signals are combined with battery input and lock control. Working in parallel, these signals are controlled via our Selector Switch for greater ease of operation by the end user. All signals and sensor accessories are monitored, complaint with EU Norm EN16005.
Set-up – Door stroke is memorised one-time during initial installation or for servicing requirements. There is no need for the operator to re-learn each time the main power is turned on.
Parameter Setting – A wide selection of operational parameters are available and can be adjusted to suit each installation with ease. Operational parameters can be adjusted to suit individual installations, through the easily accessible LED visual display found on EDM 1Eco Control box face.
Compliance – Designed to meet the demands of the European market, EDM 14Eco are CE, TUV and EN16005 compliant. Additionally can be utilized without monitoring features enabled and can accept all current sensors available in the world market today, such as BEA Eagle or Optex OA-203C together with thresh-hold safety beam protection.
Delivery – EDM 14Eco is available from within Europe as a pre-assembled sliding door operator or as a component building KIT.
Suitability – Commercial Entrance or Main Door: For installation in Airports, Hotels, Hospitals, Shops and Stores, Liabries, Schools, Office Buildings and Factories
Introduction
EDM 14Eco automatic sliding door operators forms the basis to any door automation solution. Equipped with our trademark microprocessor control and motor drive system, EDM 14Eco adapts effortlessly to varied door widths and weight capacities up to 70kg per leaf.
Ease of Installation
- With modular plug-in parts installed directly from the front onto our base rail, any component can be moved during or after installation. Components can added or replaced with ease, therefore time spent on installation or servicing is greatly reduced.

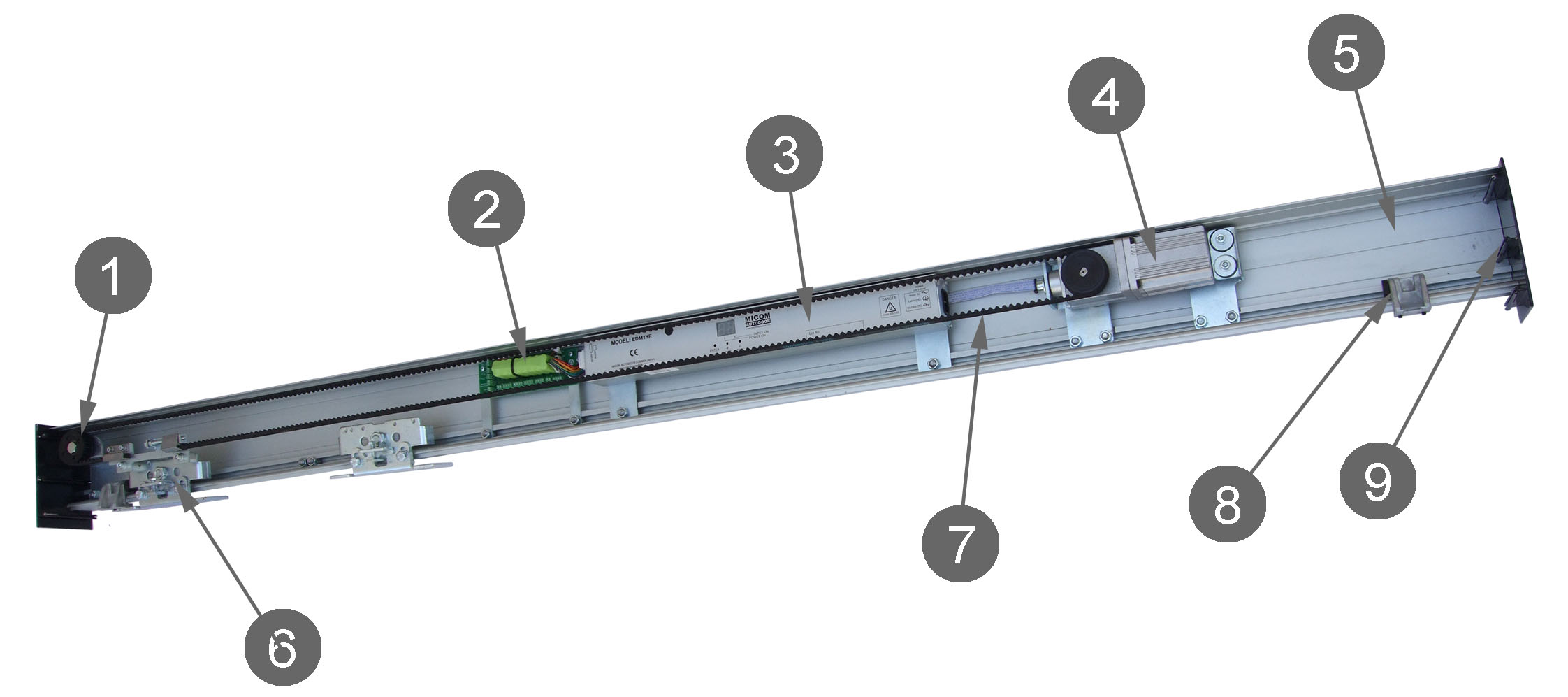

EDM 14Eco Operator
- Idle pulley
- Emicon plug-in hub with battery
- Control box with fixing plate
- Motor gear box with vibration rubber
- Base rail
- Hanger roller with belt tightening bracket
- Tooth belt
- End stopper
- End cover
Full Door Control
- From the very first power on, door optimization is automatic. Utilizing the LED Digital input display provided as standard, all parameters can be adjusted easily (without the need for any hand held PALM or expensive software). Access to operational history, cycle count and error analysis is also possible. Door parameter data can be reset to factory default settings when required.

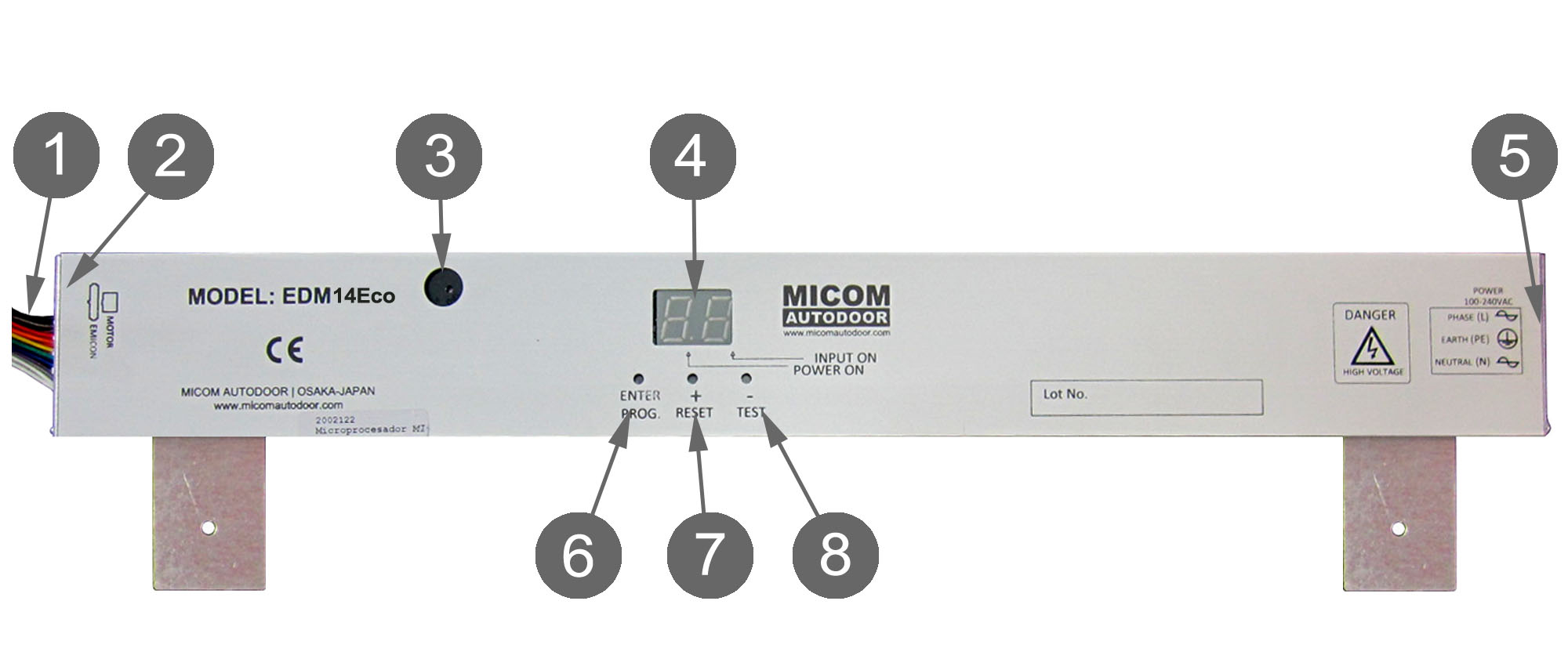

Control Panel & Adjustment
- EMICON Connection Harness
- Motor Harness Plug in
- Buzzer
- LED Display
- Power Plug in
- Entre Prog
- ‘+’ / Reset
- ‘-‘ / Test
- INPUT ON LED – Red when activation signal is received
- POWER ON LED – Red when power is on
- Digital LED Display – Visual display provided for operational setting and adjustment
- Buzzer – Audible indication of error status (optional)
- ENTER PROG. – Allows easy access to operational settings
+ RESET
- ‘+’ Operational setting – value can be increase.
- ‘RESET’ Operation factory settings can be restored
– TEST
- ‘-‘ Operational setting – value can be decreased.
- ‘TEST’ Operation can be tested by installer
Summary

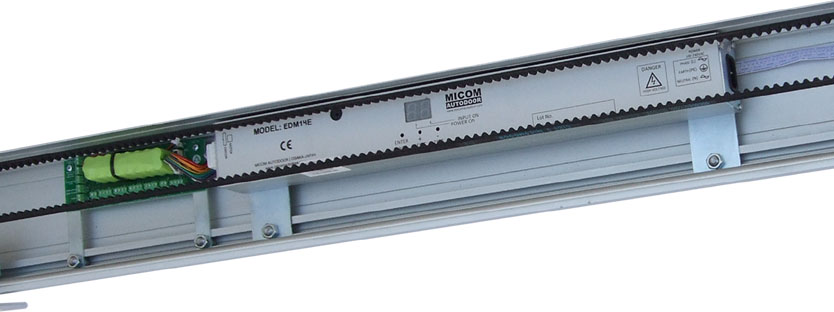

Control Box
- Function & Parameter Adjustment – Microprocessor technology
provides exact door control, wide function input options and digital setting adjustment. - Memory – Long term memory retention of operational parameters when mains power is off.
Function Summary
- Digital Input Programming
- Wide Operational Parameter Setting
- System Error Diagnosis
- Open Timer (60sec)
- Open Speed (500mm/s)
- Close Speed (450mm/s)
- Open / Close Torque
- Open / Close Break Force
- Open / Close Press Force
- Open / Close Low Speed
- Partial Open (Energy Saving) 5-90% Open
- Ratchet (Flip/Flop)
- Acoustic Signal
- Open / Close Break Point Adjustment
- Reversible Circuits (NC/NO)
- Special Operation Functions Incorporated
EMICON Communicator
- Thanks to our ‘EMICON’ wiring interface hub, wiring of accessories, such as sensors, activation devices and safety beams are quick and easy. With 24VDC output provided to power each accessory individually, there is no need for additional transformers. After installation, plugs are detachable without need to rewire each time.
EMICON – Wiring Interface with Battery
- 24 VAC Power Output
- Safety Sensor Monitoring
- Emergency Stop
- Panic / Emergency Open
- Night Switch
- E-Lock
- Internal Sensor with 24V
- External Sensor with 24V
- Safety Sensor with 24V
- Side Screen Safety with 24V
- Rotary Selector – A Input
- Digital Selector – B Input

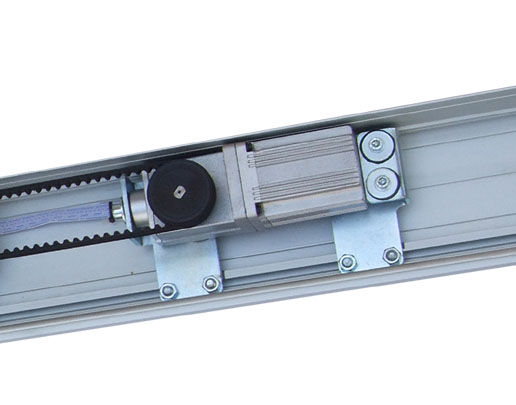

Motor Gear
- Compact and powerful motor. High speed acceleration and deceleration is controlled.
MICOM enclosed hypoid brushless motor gear ensures safe and long term reliable operation for
enhanced operational cost efficiency.
- High Speed Motor Control (500mm/s)
- 70kg~140kg Load Capacity
- Compact High Precision Gear Box
- Near Silent Acceleration and braking
- Smooth and controlled operation
Monitoring & Safety
- Complies with EU Standard EN16005 – Safety Monitoring (EN13849). Whereby before any dangerous movement, the operator communicates with its sensors to ensure door safety at all times.
- Together with in-built Battery Monitoring and the ability to review the battery strength via our LED display. We can ensure there is sufficient stored energy in case of any emergency situation. If the battery reaches a low level of stored energy, the door will emit a short beep every 30 seconds and so pedestrian safety is maintained at all times.
Electromagnetic Locking (Option)
- Electromagnetic locking ‘Fail Secure’ MRC1 (LK1) or ‘Fail Safe’ MRC2 (LK2) options are available and can be combined with our battery systems to meet safety and security requirements world wide.
Key Selector Switch
- A Rotary Key selector is supplied as standard, however a Digital Selector is also available as an upgrade option.
- EDM 14Eco will not function without either one of our selectors and is therefore an integral part of our operating system.
- Connected with only 2 or 4 wires into the EMICON hub, all signals are controlled for greater ease of operation. Selection can be performed by authorized personnel only using a secure key provided.
Rotary Key Selector (A)
1. Lock or Off / 2. Exit Only / 3. Automatic / 4. Hold Open
Digital Selector (B – Option)
1. Lock or Off / 2. Exit Only / 3. Entry Only / 4. Automatic / 5. Hold Open / 6. Partial Open
Delivery
EDM 14Eco – Available from within Europe in formats as follows:
- ‘COMPLETE OPERATOR’ consisting of: Base Rail, Cover, Control Box, EMICON Board, Motor Gear Box, End Covers, Tooth Belt, Belt Bracket Link Assembly, Belt Connection Single & Double Door, Idle Pulley Assembly, Hanger Roller Brackets x4 and Stopper x2
(COMPLETE OPERATOR – Standard Rail Length: Single Leaf – 2000mm, Double leaf – 4000mm) - ‘FULL KIT’ – (Without Rail & Cover) consisting of: Control Box, EMICON Board, Motor Gear Box, Tooth Belt (7M), Belt Bracket Link Assembly, Belt Connection Single & Double Door, Idle Pulley Assembly, Hanger Roller Brackets x4 and stopper x 2
- RAIL & COVER – (Material Only) – Standard Length: 2000mm – 4000mm Available.
Accessories
Designed for use with a new range of European Standard (EN16005) sensors such as BEA IXIO-S & Optex 0A-Axis-T.
When used without Monitoring turned on, can also accept all current sensors available in the world market today, such as BEA Eagle & Optex OA-203C together with threshold safety beam protection.
| Model | EDM-14Eco-A | EDM-14Eco-D |
| Application | Single | Double |
| Applicable Door | x1 leaf width – 1000mm (max) | x2 leaf width – 2000mm (max) |
| Door Weight (max) | 100kg | 70kg x2 |
| Power Supply | AC100-240V 50.60Hz 2A | |
| Maximum Consumption | 150W | |
| Speed | 150~500mm/s (adjustable) | |
| Motor | Brushless DC Motor | |
| Gear box | Geared | |
| Control System | Microprocessor | |
| Brake | Automatic | |
| Door opening time | 0 - 60sec (10 adjustable positions) | |
| Pressure to eliminate door frame gaps | A small force may be adjusted in order to keep the door closed or open. Force from 0 to 8kg (5 adjustable positions) | |
| When opening: Door stops. Returns to normal operation upon the activation of a sensor, or after 10 sec. | ||
| Safety obstruction function | When closing: Door opens, then closes at slow speed. Returns to normal operation | |
| upon the activation of a sensor, or after 10 sec. | ||
| Failure detection | Warning and specification of error by means of an acoustic alarm and visual display | |
| Partial opening | 10 positions for partial opening operation, from 5% to 90% | |
| Emergency battery | Allows opening or closing in an emergency situation by battery | |
| Electromagnetic lock | Fail Secure – MRC-1 (LK1) / Fail Safe – MRC-2 (LK2) (Optional) | |
| Operating temperature and humidity | Ambient temperate: from 0°C to +50°C (no condensation or icing). Ambient humidity: from 30% to 85% (the environment must be free of hazardous materials) | |
